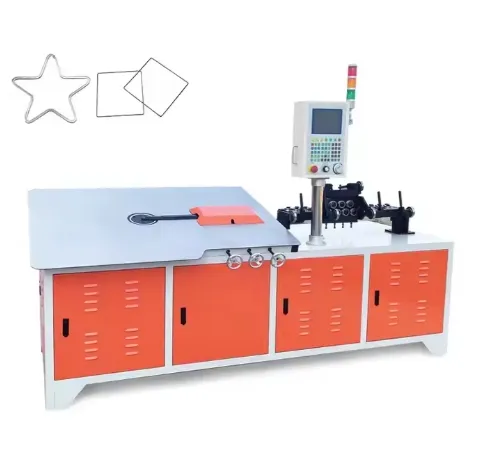

Center Cutting Type CNC Automatic 2D Wire Bending Machine for 1-4mm

Product Description

Iron Wire Bending And Forming Machine 2d Cnc Wire bending machine
2D wire bending machine product description
2D WIRE BENDING MACHING2D wire bending machine replaces labor by machine,improves production efficiency,does not need to open the mold,and sets the parameters of numerical control operation once,which has high molding precision and saves cost.
2D wire bending machine is used for iron wire, steel wire, stainless steel and non-ferrous metal wire (round, square, flat line),hit(bend)square,round,ellipse,polygon and irregular shape and all kinds of of flat buckle,all kinds of hooks.
Both the inner and outer molds can be rotated and lifted. The Taiwan motor and numerical control system have the characteristics of fast wire feeding,high precision,large memory,high flatness,easy operation.
Details of 2D wire bending machine
Good things are not afraid of the test of time, and you have to be especially careful and conscientious in doing things, and do the best you can in every little place. Only in this way can we make really high-quality things and reach the highest level. Even a small improvement shows that we are constantly striving on the road to better.
The equipment is equipped with full servo motors with high quality reducer, electrical appliances using Chint and Delisi brand, guaranteed to make more than 20 years. If customers have other electrical needs can be replaced by Siemens electrical according to customer requirements.
Precision-ground wire feed gears are perfectly matched to the equipment to ensure wire conveying accuracy and lay a solid foundation for subsequent forming processes. Taiwan brand, strong load capacity, smooth transmission, low noise, to ensure that the equipment for a long time stable operation. With fast response speed and high control accuracy, the servo motor can achieve accurate moulding of complex wire shapes and meet the processing needs of high-precision products.
Product Features of 2D Wire Forming Machine
1.2D wire bending machine wire processing precision, the error is less than 0.1mm. equipment alignment error is zero, can ensure that the production error rate down to zero, greatly improving production safety.
2.2D bending machine with a memory function of the straightening machine, straightening machine is our own research and development of patented products, can achieve the effect of one minute straightening, change the line to change the line more simple and fast, which can greatly improve production efficiency, save production time, reduce production costs.
3.2D bending machine cutter and bottom knife molds are made of CrL2MoV steel, strong and durable.
4.2D bending machine equipment panel with 5mm thickness of 304 stainless steel, more wear-resistant, the growth of equipment life, is conducive to the flatness of the workpiece.
5.2D wire bending machine head for the integral box structure, bending arm using precision gears, drive wheels and gearbox output shafts at both ends have a support bearing, to ensure its reliability and Bending precision.
6.Free trial machine is available upon your requst,and customized molds are also available upon your requst.
Technical parameter of 2D wire bending machine

ITEM	UNIT	PARAMETER	ITEM	UNIT	PARAMETER
No of Reducer	piece	3	Diameter	mm	1-4
Feeding Servo Power	kw	2.0	No of Motor	piece	3
Bending Servo Power	kw	3.1	Cylinder Matching	mpa	0.5
Cutting Servo Power	kw	3.1	Machine Weight	kg	650
Total Power	kw	8.2	Dimensions	mm	2700*950*1400

Company Profile
Founded in 1998, Xingtai Judu Technology Co.,ltd specialized in manufacturing all kinds of machinery. Our products now include 3D wire bending machine,2D wire bending machine, bucket handle machine, paint roller machine, thread rolling machine,CNC stirrup bending machine, nail making machine, screw making machine and so on. At the same time, we can produce according to our customers request. These products have been exported to the USA, Germany, Pakistan and Australia. We have 20 machine designer, 50 engineers and 300 workers.
Our factory located in Xingtai, Hebei province, in a district known as machinery hometown, occupying an area of 30,000 square meters. We have more than 100 sets of equipments, which are operated by 300 workers. We also have a highly qualified technical team engaged in developing new items and dealing clients customized orders. Our annual export amount is over USD9,000,000.
Having developed more than 500 kinds of machinery in the past 20 years, we are marketing all series under our brand.
Working in line with the principle of " integrity, quality, service" we have already obtained ISO certification, meanwhile, all products meet the requirements of CE standards, with good quality, our products enjoy a high reputation among all clients, having cooperate with many famous machinery importers.
Our company promise: Reasonable prices, short production time and satisfactory after-sales service. We are confident in producing the best machinery and service, please feel free to contact with us if you are interested in any of our machinery. We are honored to have opportunity of establishing a business relationship with your esteemed company.
FAQQ1: Are you a manufacturer?
A1: For over 20 years Xingtai Judu have developed an expertise in wire bending machine , we master the design, the manufacturing and the maintenance of molds.
Q2: Where is your factory? Can I visit your factory?
A2: Hefei Better located in the city of Hefei.
Q3: How to buy your machine?
A3: Please advise specific by mail, after confirm with machine model and price, we will sign a PI for confirming when the first deposit was done, machine manufacture begins, When the balance is complete we will ship out and provide the tracking number.
Q4: Are we still need to install the machine after we got?
A4: All of the machines will be tested ready before shipping, video, and manual will attached for use and master the machine well.
Q5: How about your warranty?
A5: 1. All of our products for one year warranty; 2. 24-hour telephone service; 3. A large stock of components and parts, easily worn parts; 4. Toolkit will attach with Machine.
Q6: How can you guarantee we receive a good performance product?
A6: Xingtai judu applied series inspection process during production When the machine was finished. QC will provide inspection video and pictures for double check the quality control, and we will send the troubleshoot and solutions if needed; Also third part or customers come to the factory have field inspection is welcome.
Q7: How soon can you deliver the equipment?
A7: Xingtai judu will deliver your equipment by within 7 days(stock available); Customized equipment or no inventory machine normally need 7-15 days.
Q8: Who do I talk to when I want to start an application?
A8: Xingtai judu has experiences of sales engineers to provide the assistance and support you require.
Q9: Can I get a discount or can you do something with the price?
A9: Xingtai judu sales contact or Key Account Manager can answer your cost-related questions. Please email us. Thank you in advance.
Q10: Packaging & Shipping
A10: Xingtai judu Provide sturdy plywood case packaging machines, safety and meet the international export standard.
If you have any questions or needs about 2D wire bending machine, please feel free to contact us, we will be happy to provide you with professional answers and services.
