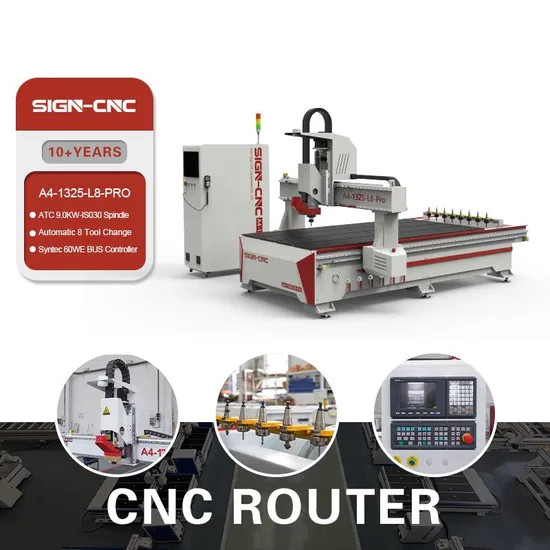

CNC Router with Atc 9kw Spindle 3axis for Wood Furniture Making and Processing
Basic Info.
Model NO.
A4-1530-L8-Pro
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V
Model
A4-1530-L8-PRO
Working Size
1500X3000mm
Z Axis Height
300mm
Spindle
Hqd 9kw Atc Spindle
Spindle Cooling
Air Cooling
Guide Rail
25mm Square Guide Rail and Rack
Motor
1000W Servo Motor and Drive
Reducer
Shimpo
Controller
Syntec 60we
Table
Vacuum Table
Vacuum Pump
7.5kw
Dust Collector
3kw
Software
Artcam
Weight
1500kw
Package
Wooden Box
Transport Package
Wooden Package
Specification
15 cubic meter package
Trademark
SIGN-CNC
Origin
China
HS Code
8465990000
Production Capacity
1000set/Year
Packaging & Delivery
Package Size
320.00cm * 230.00cm * 190.00cm
Package Gross Weight
1600.000kg
Product Description
CNC Router with ATC 9KW spindle 3axis| Model | A4-1530-L8-Pro |
| X, Y Working size | 1500x3000mm |
| Z feed Height | 300mm |
| Table Surface | Vacuum table |
| X, Y Structure | Rack and Pinion Drive, 25mm Linear Square Guide Rail |
| Z Structure | 25mm Linear Square Guide Rail and Ball Screw |
| Max. Power Consumption | (Without spindle) 2.0Kw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 9.0KW HQD spindle ATC |
| Spindle speed | 0-24000RPM |
| Tool Magazines | Linear Tool magazines 8pc |
| Drive Motors | 1000W Bus Servo motor and driver Zaxis with brake |
| Working Voltage: | AC380V/50/60Hz |
| Command Language | G code |
| Control System | Syntec 60WE |
| X,Y,Z repositioning Accuracy | ±0.01mm |
| X,Y Resolution | <0.01mm |
| Software | Artcam |
| Running Temperature | 0 degree - 45 degree |
| Relative Humidity | 30% - 75% |
| Package | Wooden Box |
