Waste PP PE Film Woven Bags Plastic Double-Stage Water Ring Pelletizing Line / Granulating Machine

Product Description

Waste PP PE Bag Plastic Pelletizing Granulation Machine
Description:
1. This PP PE Bag Pelletizing line Granulating Machine line can process recycled PP PE film and turn them into PP PE granules.
2. The granules are cutted in the water which make the granules smoothly and rounded, which can command a higher price in the market.
3. It adopts Japanese technology for automatic temperature control.
4. It's easy to operation, stable working and excellent quality, making it your first choice for plastic recycling.

Product Description
PP PE plastic pelletizing production line is used to make pellets from waste plastics, like PP, PE films, or HDPE, PP flakes or PET flakes.

For plastic PP, PE films, we developed a compact pelletizing line for them. Due to the films are very soft and foamed, it's difficult to be filled into extruder directly, even by force feeder screw, the efficiency is not good, and can be blocked. So, we integrated the most advanced technologies and cost-effective concepts for this kind of machine, we developed the PP, PE film granulating machine.
Features
1. All recycling materials after sorting, crushing, and washing, no need spin-drying, or oven drying, or drying in the sun, can be used to produce. This plastic pelletizing line is applicable for both dry and wet materials.
2. It is full automatic from raw materials crushing, washing, feeding to pelletizing.
3. It takes full advantages of high pressure friction ceaseless temperature increasing system to heat, avoiding continuous heating, which is energy saving.
4. It adopts separate and full automatic power distribution system to ensure motor running under safe and normal condition.
5. Screw and barrel is made of high strengthened carbon steel, which has long using life.
Application
PP PE film plasticpelletizing production line is mainly used to make pellets from waste plastics, like PP, PE films, agricultural films, LDPE stretch films, LLDPE films, PP woven bags, shopping bags, and other soft PP,PE plastics.
Processing capacity is from 100kg/h to 1500kg/h.
SJ series Single-stage/Double-stage pp pe film pelletizing line/granulating machine:

SJ series single stage pp pe film granulator machine
Model	SJ-65		SJ-80		SJ-100	SJ-120		SJ-150		SJ-200
Screw Dia.	65		80		100	120		150		200
L/D	28-30		28-30		28-30	28-30		28-30		28-30
Capacity	60-80kg/h		80-100kg/h		150kg/h	300kg/h		500kg/h		800kg/h
SJ series double-stage pp pe film granulator machine
Model		SJ-100/100		SJ-120/120			SJ-150/150		SJ-200/200
Screw Dia.		100		120			150		200
L/D		28-30 10-15		28-30 10-15			28-30 10-15		28-30 10-15
Capacity		120-180kg/h		220-300kg/h			400-500kg/h		800-1000kg/h

Suitable raw material:
After recycling pelletizing machine:

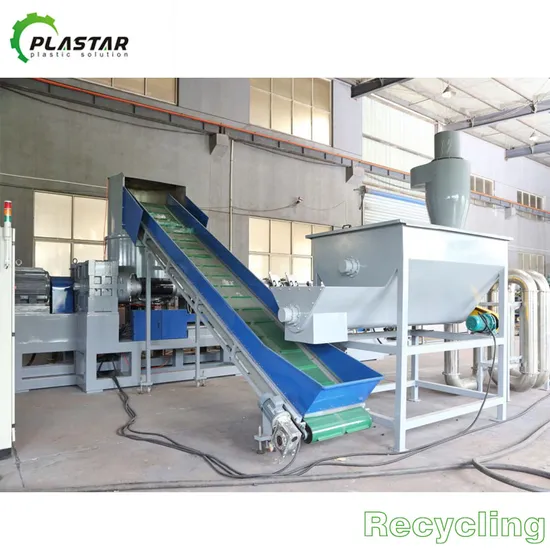

Machine pictures for reference:
No mesh screen changer
Customer visting:
Machine package&shipping:
