Lifting Manipulating 40kg Bags Rubber Bale Supporting Vacuum Suction Crane Lifter

Product Description

Tube lifter manufacturer support OEM&ODM service
Our solutions can be optimized for different customer requirements and environments. With a series, with
columns of suckers and grips, Vaculex® can grasp, lift and carry almost anything, packages include: parcels
, luggage, sacks, bags, sheets, glass, casks, barrels, bottles, food, stones, the Windows, etc.

Model	ETJSV100-30	ETJSV100-30	ETJSV100-30	ETJSV100-30	ETJSV100-30	ETJSV100-30	ETJSV100-30	ETJSV100-30
Tube Length	2500mm-4000mm
Suction Capacity	30kg	40kg	50kg	60kg	80kg	100kg	120kg	180kg
Tube Dia.	100mm	120mm	140mm	160mm	180mm	200mm	230mm	250mm
Lifting Speed	1m/s	1m/s	1m/s	1m/s	1m/s	1m/s	1m/s	1m/s
Suction Dia.&Qty.	TBD
Vacuum Power	2200W	2200W	3000W	3000W	3000W	3000W	3000W	5500W
A-crane	3800mm-4150mm (to be customized)
B-Rocker Arm	3000mm-4000mm
C-Lifting Stroke	0 to 1250mm-0 to 2500mm (to be customized)
Rotation	230°	230°	230°	230°	230°	230°	230°	230°
Voltage	380V 50HZ	380V 50HZ	380V 50HZ	380V 50HZ	380V 50HZ	380V 50HZ	380V 50HZ	380V 50HZ

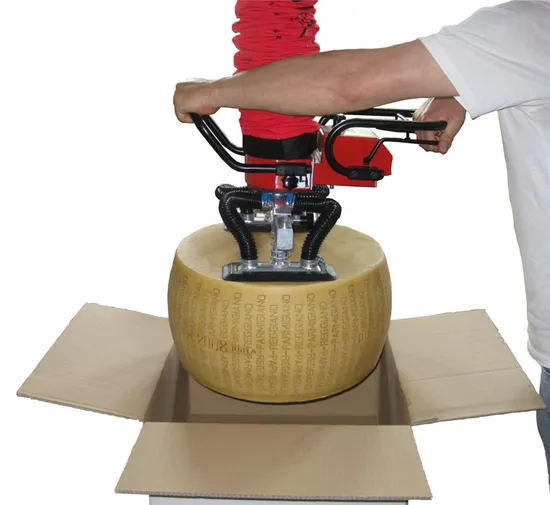

Almost everything can be lifted
With custom-made tools we can solve your specific needs. Please contact us for more information
Main Features
User friendly
A vacuum tube uses suction to both grip and lift the load in a single movement. The control handle is easy for the operator to use and feels almost weightless. With a bottom swivel, or an angle adaptor, the user can rotate or turn the lifted object as required
* Good ergonomics means good economics
Long lasting and safe, our solutions provide many benefits including reduced sick leave, lower staff turnover and better staff utilization - usually combined with higher productivity.
* Easy installation and maintenance
The power source can either be an electric pump or pneumatic vacuum pump. The system is normally installed on a jib or a lightweight bridge crane. The installation is simple and is adapted to your specific lifting needs. Our lifters are made of extremely hard-wearing parts which seldom require service and repair.
* Unique personal safety
Vaculex® is designed with several built-in safety features. For example, our non-return valve - a standard on all units - ensures that the load is not dropped if the vacuum suddenly stopped running. Instead, the load will be lowered to the ground in a controlled manner.
* Productivity
Vaculex® not only makes life easier for the user; several studies also show increased productivity. This is because the products are developed using the latest technology in cooperation with industry and end-users' demands.
* Application specific solutions
For maximum flexibility the tube lifters are based on a modular system. For instance, the lift tube can be changed depending on the lifting capacity required. It is also possible to have an extended handle fitted to the Vaculex® for applications where extra reach is required.
How to define a design concept?
10 Key Items to Check
1-Min & Max weight of loading
2-Min & Max dimensions
3-Min & Max lifting height
4-Porous or non-porous
5-Lifting cycles per hour
6-Average cycle time
7-Photos of object and work area 8-Work area coverage
9-Ceiling height
10-Lowest obstacle
