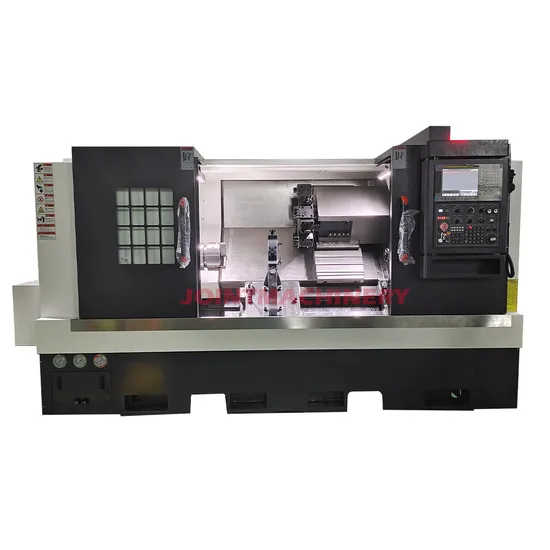

High Precision Taiwan Spindle Automatic Torno CNC Metal Turning Lathe

Product Description

This series of high-speed CNC lathes with inclined beds adopt imported or domestic high-performance CNC systems and their matching motors and drives to achieve two-axis linkage processing. Equipped with high-precision spindles, it has the characteristics of high precision, high speed, and stable operation. It can be equipped with hydraulic chucks and elastic collets, which can effectively save workpiece clamping time. Electric turrets, hydraulic turrets, and servo turrets can be selected. This machine tool is suitable for processing larger parts and realizing thread, circle, cone and other processing. It is widely used in the processing of rotating body products in the automotive industry, electronics industry, motorcycles, home appliances, furniture, lighting and other industries.
Spindle
Equipped with custom-made spindle with high productivity, high rigidity and high precision.
Cross Slide
Integrated screw bearing and integrated screw nut seat.
Bed Frame
Integral multi-cavity honeycomb bed.
High-Speed Indexing Turret
For the servo turret or servo power turret, we use a high-precision, high-rigidity brand, a high-precision three-tooth positioning structure, high-speed opening and closing, and the shortest path for tool change.Optional Y-axis power turrets or imported hydraulic turrets.
Tailstock
Tailstock-free integrated linear guideway tailstock.
High Precision Taiwan Spindle Automatic Torno CNC Metal Turning Lathe

Model		HTW-600/1050
Processing range	Max swing diameter over bed (mm)	Φ600
	Max processing diameter (mm)	Φ500
	Max processing diameter of carriage (mm)	Φ300
	Max processing length (mm)	1050
	Spindle/Chuck specifications	A2-8/10''
	Spindle through hole diameter/Bar diameter	Φ87/Φ75
Axis	X-axis travel (mm)	260
	Z-axis travel (mm)	1050
	X/Z rapid feed speed (m/min)	30/20
Tool magazine	Tool	100-12T
	Shank size (mm)	25*25/Φ40
Tailstock	Tailstock form	Sleeveless linear rail integral mobile type
	Taper (Mohs) / Travel (mm)	Mo5# / 1000
Appearance	Dimension (mm)	3600*1700*2000
	Weight (kg)	7100
Accuracy	Positioning accuracy (mm)	X≤0.005 Z≤0.008
	Repeat positioning accuracy (mm)	X≤0.003 Z≤0.005
Electric	Spindle motor rated power (kw)	15/18.5
	Spindle speed (rpm)	2500
	Control system	SYNTEC/GSK/KND

Standard Configuration:
HIWIN/PMI P- level matching guide rail, HIWIN/PMI C3 grade double nut screw, Imported servo or hydraulic turret, Taiwan spindle, Herg lubrication system, LX coolant system, Fully enclosed cover, C-axis function
Optional Configuration:
Chip conveyor, Auto doors, Fanuc/Mitsubishi/Siemens system, Tool setter, Ethernet functions
