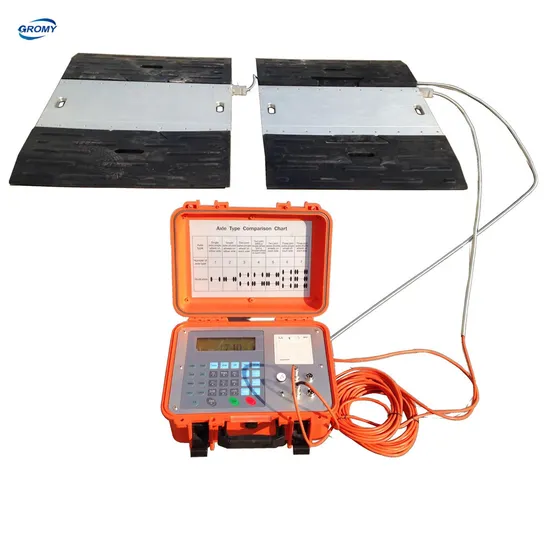

Electronic Portable Axle Weighing Scale Wheel Scale

Product Description

Electronic Portable Axle Weighing Scale Wheel Scale
Wired Portable Axle Scale
1. The portability is largely increased.
2. Ultra high frequency ensures better anti-electrmagnet ability.
3. Double LCDs are used.
4. Display date and time, truck number and ticket number are manually input, battery voltage monitor is indicated and alarm can be generated.
5. Measure and display vehicle velocity (km/h).
6. Floating technoloty is adopted to remove zero drift.
7. Numbered options.
8. Vehicle axle weight is measured axle by axle, and the max number is unlimited.
9. Micro printer is embedded in the indicator, the print ticket contains date, time, truck number, ticket number, axle weight, total axle weight, truck weight, overload executive organization.
10. RS232 port is used to communicate with PC.
11. Long life-span storage battery ensures long-time operation in field.
12. In static mode, customer and cargo number can be input.
13. Max stored records are up to 300 and can be expanded to 1000.
Applications:
1. Weighing and load control of loading truck in road transportation, construction, agriculture, forestry and dustbin disposal.
2. Weighing of loading truck by executive enforecement units.
3. Test weight and center of gravity of aero-plane.
4. Weighing automobile wheel and axle load distribution in automobile production line.
5. Stablity test of special automobile, such as fork-lift truck, crane.
Main Technical Parameters:
Weigh pad: dimension: 800*350*22mm, weight: 28kg, height: 22mm
wheel weighing span:0~20t, axle weighing span:0~40t, total weighing span:1~200t
axle weight display:0~99995kg, total weight display:0~999995kg
