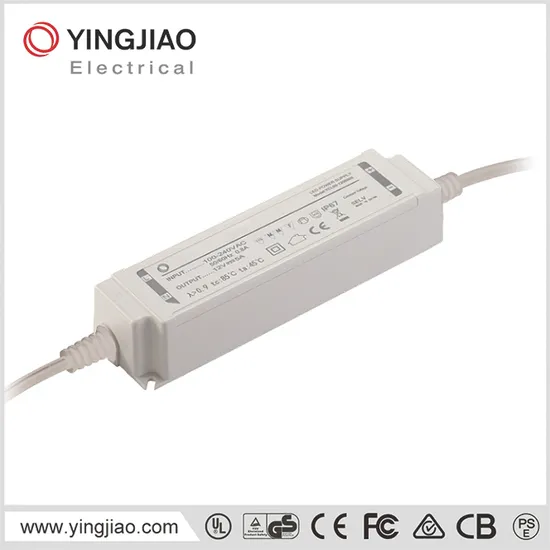

2100mA 60W Power Supply for LED Lighting

Product Description

2100mA 60W Power Supply For Led Lighting
Product Description

Model:	YCL60 constant current series
Power:	60W max.
Input:	100-240VAC 50/60Hz
Output Voltage:	12-48V
Output Current:	100MA-5000MA
Inrush Current:	65 Amps max. at 230VAC/50Hz,full load
Leakage Current:	2.5mA Max. at 264VAC input
No Load Power Consumption :	<0.5W
Protections:	Short Circuit /Over Current /Over Voltage/over temperature protection
Short Circuit Protection (SCP):	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-20°C-50°C
Working Humidity:	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	-40 ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Certificates and approvals:	CE ROHS EMC
EMI EMISSION:	Conducted disturbance at mains terminals:EN 55015 Radiation Test&Conduction Test: EN 55015 Magnetic Emission:EN55015:2013 Harmonic Test : EN 61000-3-2 Voltage fluctuation and Flicker Test : EN 61000-3-3
EMS IMMUNITY:	ESD Test:IEC 61000-4-2 RS Test:IEC 61000-4-3 EFT/B Immunity Test:IEC61000-4-4 Surge Immunity :IEC61000-4-5 Conduted RF Immunity: IEC 61000-4-6 Power frequency magnetic field:IEC 61000-4-11 Voltage dips and interruptions,100% reduction: IEC 61000-4-11 Voltage dips and interruptions,30% reduction: IEC 61000-4-11
MTBF	100000 hours minimum at full load at 25 ambient
Life:	3-5 years alternative
Dimension:	163*43*33mm
Weight:	250g
Packing:	50PCS/CTN,37.5*20.5*32cm

Details:

Model:	YCL60-0850700	YCL60-0571050	YCL60-0211400	YCL60-0282100
Rated Current:	700mA	1050mA	1400mA	2100mA
Voltage Range:	42-85V	28-57V	21-42V	14-28V
Rated Power:	60W	60W	60W	60W
Ripple & Noise(max.):	<1%	<1%	<1%	<1%
Voltage Tolerance:	±5%	±5%	±5%	±5%
Line Regulation:	±3%	±3%	±3%	±3%
Load Regulation:	±5%	±5%	±5%	±5%
Efficiency:	90%	90%	90%	90%
Setup,Rise time	1 second max./40 MS max.
