4*8FT HDF Melamine Veneer Laminated Hot Press Machine /Pre Press Machinery / Press Equipments for Plywood Production with CE ISO

Product Description

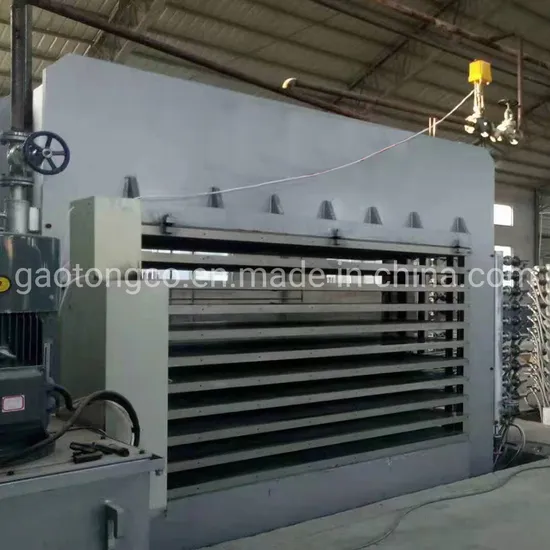

HDF melamine veneering laminated board hot press machine with production line
Product Parameters
Condition:New
Type:Hot Press Machine
Place of Origin:Shandong, China
Voltage:260V/380V/415V/customized
Dimension(L*W*H):3550*1370*4560mm
Certification:CE ISO9001
Power (kW):26kw
Weight (KG):38000 kg
Applicable Industries:Manufacturing Plant, plywood machinery
Warranty:2 years
After-sales Service Provided:Field installation, commissioning and training
Key Selling Points:High-accuracy

Type	Size(ft)	Nominal Pressure(KN)	The Finished Board Size(mm)	Working Pressure(kg/cm2)	Main oil cylinder (Diameter×Quantity)
GTH-900T	4×8	9000	1220×2440	≤30	Φ280×6
GTH-1200T	4×8	12000	1220×2440	≤40	Φ320×6
GTH-1400T	4×8	14000	1220×2440	≤47	Φ340×6
	5×8		1550×2440	≤37	Φ340×6
	6×8		1830×2440	≤31	Φ340×6
GTH-1600T	4×8	16000	1200×2440	≤53	Φ380×6
	4×9		1200×2750	≤47	Φ380×6
	5×8		1500×2440	≤42	Φ380×6
	7×9		2100×2750	≤27	Φ380×6
We can also design hot press machine according to your requirements. So far, our company has successfully made 6*12ft size 2800Ton lamination hot press machine

Detailed Photos

Our Advantages

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Canada, Turkey, United Kingdom, United States, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Colombia, Sri Lanka, Bangladesh, South Africa, Kazakhstan, Kyrgyzstan Company Profile
GTCO Machinery company is located in Linyi City--- a commercial and logistics city.
After more than 20 years' continuous innovation and development , Machinery has become an outstanding enterprise along with strong power , advanced technology and excellent quality Products are sold nationwide , exported to Asia , Europe , Africa and Oceania... etc
We have strong technical strength, talented people, and constantly introduces various automation and semi-automatic products. Now the national key promotion panel automation transformation production line, plywood production line, veneer machinery .automatic edge cut machine ,veneer peeling production line, veneer dryer, automatic veneer cutting machine, hot press, cold press, lifting platform, automatic putty- scraping machine and glue spreader etc.
2020 years ,we join in the new design and construction machine - stone crusher ,the main product have PE Jaw Crusher, PF Impact crusher , CS Cone crusher Feeder and screen Mobile crusher. etc.
We always right here waiting for service to you !
Welcome to visit us.
Product Usage
Plywood Factory
