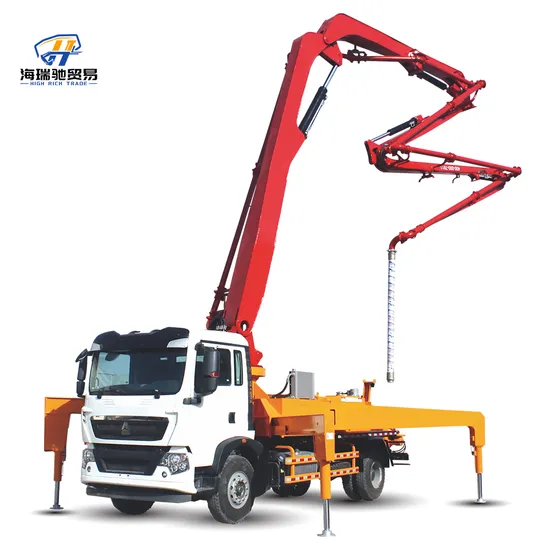

Highrich High Performance 33m Diesel Hydraulic Control Concrete Pump Truck for Sale
Basic Info.
Model NO.
HR33m
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
120m²/h
Feeding Height
1400mm
Vibrating Amplitude
1.2mm
Certification
CE
Condition
New
Color
Optional
MOQ
1unit
Concrete Pump Type
Mounted Concrete Pumps Truck
Concrete Pump
Widely Used
Function
Concstruction
Equipment Weight(Kg)
21000
Axle
8X4
Steering
LHD, Rhd
Seats
3
Boom Form
Rz
Hydraulic System Type
Open Type System
Maximum Aggregate Size(mm)
40
Theory Pumping Pressure(Mps)
10
Hopper Capacity(L)
680L
Recommended Concrete Slump(mm)
14-23
Hydraulic Oil Cooling
Air Cooling
Transport Package
Nude
Specification
10400*2480*3650mm
Trademark
HIGHRICH
Origin
Shandong, Qingdao
HS Code
8429521200
Production Capacity
1200 Pieces/Years
Packaging & Delivery
Package Size
1200.00cm * 230.00cm * 269.00cm
Package Gross Weight
21000.000kg
Product Description
Product DescriptionTechnical Features:
Power system: The original diesel engine features strong power, excellent performances, and high reliability.
Hydraulic system: The pumping hydraulic system adopts dual-pump dual-circuit constant-power open-loop hydraulic system and German Rex*roth oil pump..The main cylinder and swing cylinder are driven by two pumps separately. The swing cylinder features quick and powerful motions. The hydraulically controlled reversing mode guarantees more reliable and stable reversing motions for the main pumping line.
Pumping system: The maximum capacity of the hopper is up to 800L and the inner walls of hopper adopt arc-shaped design to eliminate dead spaces for material deposits. The high wear-resistant wearing plate and cutting ring sufficiently cut down the user's operating cost. The S-pipe valve features low height difference and achieves smoother concrete flow.
Electronic control system: The main electronic control units adopt originally imported products, featuring simple system, low unit number, and high reliability.
Lubrication system: The central lubrication mode is adopted so that the hydraulically controlled follow-up grease pump guarantees the lubrication effects. All lubrication points of the multi-plate progressive grease distributor are fitted with blockage indicator to ease the maintenance and checking. In event of blockage in any oil line, the other oil lines can still function normally.
| Overall Parameter | |
| Model | 33M |
| Overall length(mm) | 10400 |
| Overall width(mm) | 2480 |
| Overall Height(mm) | 3650 |
| Total weight(kg) | 21000 |
| Boom form | RZ |
| End hose length(m) | 3 |
| First arm length/angle(mm/°) | 7250/90 |
| Second arm length/angle(mm/°) | 5800/180 |
| Third arm length/angle(mm/°) | 5500/180 |
| Fourth arm length/angle(mm/°) | 6200/235 |
| Fifth arm length/angle(mm/°) | 6200/210 |
| Sixth arm length/angle(mm/°) | 0 |
| Hydraulic system type | Open type system |
| Distribution valve form | S tube valve |
| Theory output capacity(m³/h) | 80 |
| Maximum aggregate size(mm) | 40 |
| Theory pumping pressure(Mps) | 10 |
| Hopper capacity(L) | 680L |
| Recommended concrete slump(mm) | 14-23 |
| Hydraulic oil cooling | Air cooling |
