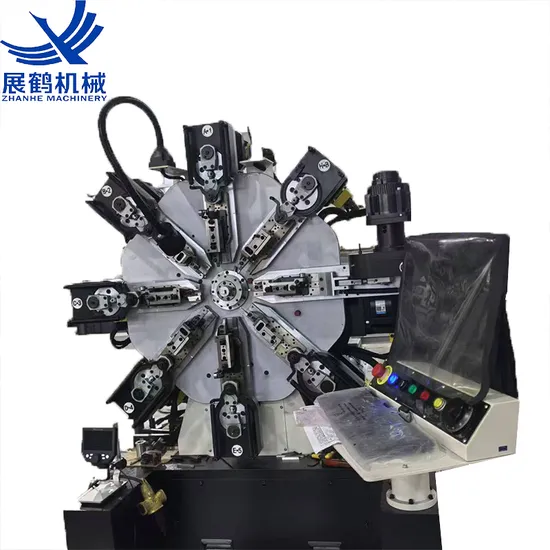

3mm 5 Axis CNC Spring Coiling Machine for Small Spring Making Machine

Product Description

Product Description
THIS Small Spring Making Machine machine is suitable for making compression spring, tension spring, torsion spring, flat spring, tower spring, scroll spring and other difficult spring.
1) Flexible external twisting head with faster speed and more twisting angle.
2) Camless design, flexible in adjusting and great in precision.
3) Running in a high automatization and intellectualization, no pollution.
4) Bilingual interface(English optional), easy to operate.

wire diameter		1.6-4.5mm
Number of Axis		4-5 AXIS
Feeding Motor		5.5kw
upper and under powder		2.7kw
Total Output Torque		6779N
Voltage		380V
Feeding Roller Pairs		more than 2000NUMBERS
Voltage regulator Power		3
Machine Weight		1900KGS
