Guide Rail High Frequency Hardening Integral Bed Cw61100 Heavy Duty Hand Lathe

Product Description

Overview

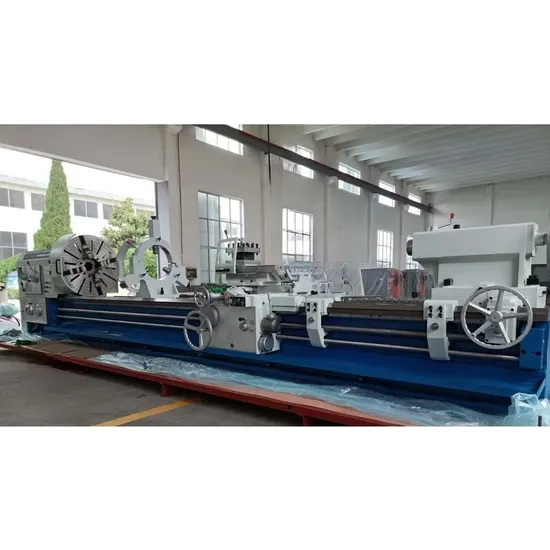

CW SERIES ENGINE LATHE-CW61100 Manual Lathe Machine
Integral machine bed adopts high strength iron to realizehigh rigidity and precision.
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance.
Headstock gears hardened and precision ground to achieve high precision and low noise. Standard configuration
3-jaw chuck(Ф315mm) 4-station manual toolpost
Work lamp
Coolant system
Standard safety cover
Tail stock
Pad iron
Tool box
Operation manual
Optional configuration
Follow rest Center rest
Digital readout
Grinding attachment
Protective cover (lead-screw, chuck, tool post)

Specifications

Specification	CW61100
Max. swing over bed	1000mm
Max. swing over cross slide	680mm
Center distance	1500/2000/3000/4000mm
Bed width	600mm
Max. load capacity	4T
Spindle bore	104mm
Spindle bore taper	Metric φ120/MT5
Spindle nose type	A2-11
Spindle speed steps	FWD. 18 steps
Spindle speed range	5.4-720rpm
Chuck	φ315-3-jaw manual
Turret/ tool post	Manual turret 4 position
Tool shank size	30*30mm
X travel	420mm
Z travel	1350/1850/2850/3850mm
X axis feed grade/range	64/0.05-0.912mm/r
Z axis feed grade/range	64/0.1-24.3mm/r
X axis rapid traverse	2300rpm
Z axis rapid raverse	4000rpm
Tailstock quill diameter	φ100
Tailstock quill taper	MT5
Tailstock quill travel	250mm
Main drive motor	11kw
Coolant pump motor	0.125kw
Machine Weidth*Height	1750*1750mm
Machine Length	4000/4500/5500/6500mm
N.W.	5300/5700/6400/7100kg
