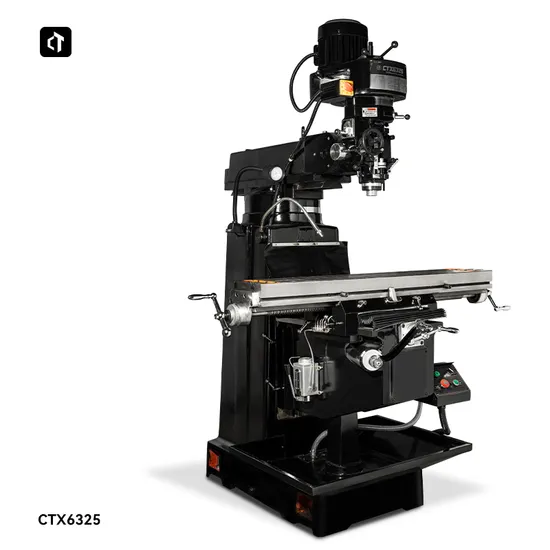

Ctx6325 Turret Milling&Drilling Machine with Dro Auto Feed

Product Description

Workbench size	254×1270mm(10'×50')
X-axis travel	780mm
Y-axis travel	420mm
Z axis travel	420mm
Spindle taper	R8
Spindle travel	127mm
Spindle speed	16
Spindle feed	0.076mm/0.003" 0.038MM/0.0015" 0.203MM/0.008"
Spindle low speed	66,110,175,270,550,930,1460,2270r/min
Spindle high speed	132,220,350,540,1100,1860,2920,4540r/min
Number of slots×width	3×16mm
T-slot spacing	65mm
Voltage	380V
Frequency	50Hz
Machine head motor	3HP\2.2KW
Cool the motor	1\8HP\45W
Maximum Workpiece Weight	300kg
External dimensions	1700×1680×2090mm
Net weight	1300kg

Features
1. This machine tool is compact in structure, small in size and high in flexibility. The milling head can mill at multiple angles. It can rotate 360° in the X direction, ±90° in the Y direction, and ±45° in the Z direction.
2. The milling head of the machine tool adopts Taiwan precision high-speed milling head. The milling head has a high spindle speed and a large speed range, which can fully exert the tool performance; the spindle sleeve can automatically feed and stop the tool, and the milling head is equipped with a fine-tuning limiter And the overload protection device can effectively ensure the accurate positioning of the tool and a certain cutting depth.
3. The machine tool workbench and lifting platform adopt centralized lubricating machinery. The machine tool is equipped with a manual oil pump, which is used to supply oil to lubricate guide rails, screw nuts, etc.
Size/Weight
The appearance/package size of the product is measured manually, and there is a small error. It is normal, and the specific object shall prevail.
Identification

1.High and low speed transfer switch	6.3HP 2.2kw motor
2.Sleeve feed limit	7. Main shaft clutch handle
3.Cooling water pump	8.Swing ±45°back and forth
4.Working table	9.Feed handle
5. Z-axis lifting	10.Control panel

Product display
Details introduce
High Speed Precision Milling Head
Strong cutting ability, high precision, the radial runout of the spindle is within 1 thread.
2.2KW high-power two-speed motor
By changing the position of the motor belt and the high and low speed knobs, the spindle speed can reach 16 types to meet different processing needs.
Low speed: 66~2270 RPM
High speed: 132~4540 RPM
Standard Accessories(Attached in Machine)
