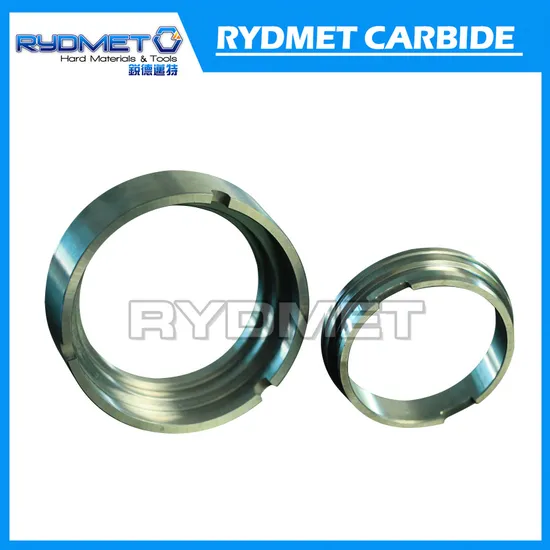

111aaaa-Cemented Tungsten Carbide Mechanical Seal Face Rings
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
111AAA-CARBIDE-SEAL-FACES
Speed
High-Speed Mechanical Seal
Temperature
High Temperature Mechanical Seal
Performance
Wear
Standard
Standard
Type
Cemented Carbide Components
Balance
Balanced
Surface
Finish Ground
Catageory
Carbide Resistance Parts
Materials
Cemented Tungsten Carbide
Grade
Bk8, Rd08n, Rd06n
Hardness
88-90 Hra
Application 2
Pump Wear Parts
Applications1
Oil Filed Wear Parts
Application4
Oil Fields Wear Parts
Application
Valve Parts
Name 2
Cemented Carbide Components
Transport Package
Standard Packing for Cemented Carbide Rods
Specification
20MM TO 300 MM HEIGHT
Trademark
RYDMET CARBIDE
Origin
China
HS Code
8466939000
Production Capacity
2000 PCS /Month
Product Description
The Introduction of the cemented Tungsten Carbide Seal Faces
Rymdet Carbide Technologes produces cemented carbide Seal Faces ( Rings) for pumps and mechanical seals, which provide outstanding material performance in corrosive and abrasive environments and in any fluid handling environment, because we can choose the right grade for your applications from our Nickel-Bonded Grade, Cobalt-Bonded Grade or mixed binder bonded Grade. Our engineers can always provide you the right grade for the specific application environment.
Type of Cemetend Tungsten Carbide Seal Faces
* ** 1 or both surfaces can be with lapping.
*** We can provide the Carbide Seal Faces in Sintered condition with grinding allowance.
** * Custom Sizes can be avaialble as per request.
The Grade Table for Reference:
| Rydmet Standard Carbide Grade Chart for Wear Parts, Components | ||||||
| Grade Code | Binder Content & Type | Hardness (Ra) | Hardness | Density (g/cm3) | Transverse Rupture Strength (TRS) | Grain Size |
| (HV30) | ||||||
| RD06X | 6% Co | 91.5 | 1530 | 14.95 | 2,300 | Fine |
| RD08X | 8% Co | 90.8 | 1450 | 14.75 | 2,500 | Fine |
| RD15X | 15% Co | 88.9 | 1250 | 13.9 | 2,700 | Fine |
| RD06M | 6% Co | 90.3 | 1380 | 14.95 | 2500 | Medium |
| RD08M | 8% Co | 89.5 | 1300 | 14.75 | 2600 | Medium |
| RD011M | 11% Co | 89.2 | 1270 | 14.3 | 2,650 | Medium |
| RD015M | 15% Co | 87 | 1070 | 14.0 | 2,650 | Medium |
| RD06S | 6% Co | 93 | 1790 | 14.95 | 2,600 | Submicron |
| RD10S | 10% Co | 91.8 | 1580 | 14.45 | 2,650 | Submicron |
| RD10C | 10% Co | 88 | 1160 | 14.5 | 2,700 | Coarse |
| FC11C | 11% Co | 87.5 | 1110 | 14.45 | 2,800 | Coarse |
| RD06N | 6% Ni | 90 | 1350 | 14.9 | 1,800 | Medium |
| RD08N | 8% Ni | 88.5 | 1700 | 14.7 | 1,900 | Medium |
| RD10N | 10% Ni | 88 | 1160 | 14.5 | 1,930 | Medium |
| RD12N | 12% Ni | 87.5 | 1110 | 14.1 | 1,950 | Medium |
| RD06N2 | 6% Ni+Cr | 89 | 1250 | 14.2-14.9 | 1,600 | Medium |
| RD08N2 | 8% Ni+Cr | 88.5 | 1210 | 14.0-14.8 | 1,700 | Medium |
| RD06UF | 6% Co | 94 | 2010 | 14.9 | 3,800 | Ultra-fine |
