Vehicle 2.45GHz Active Long Distance RFID Reader 200m
| US$295.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Active long distance rfid reader
Interface
PCMICA
Reading Distance
>10m
Application
Parking, Hospital, Library, Company, Bank, Store
Working Frequency
ISM 2.4GHz ~ 2.5GHz
Identify Direction
Semi-Omnidirectional
Antenna
15dBi Built-in Antenna
Polarization
Vertical Polarization
RF Power Range
-30 dBm ~ 0 dBm (Set by Software)
Modulation
Gfsk
Communication Speed
1000kbps
Anti-Collision
Read up to 200 Pieces of Tags Simultaneously
Read Distance
0 ~ 100 M Adjustable
Working Status Indication
Buzzer
Transport Package
100PCS/Bag or Other by Customized
Trademark
DAILY
Origin
Guangzhou, China
Production Capacity
5000000PCS Per Month
Packaging & Delivery
Package Size
30.00cm * 20.00cm * 20.00cm
Package Gross Weight
0.200kg
Product Description
Product Details: | |

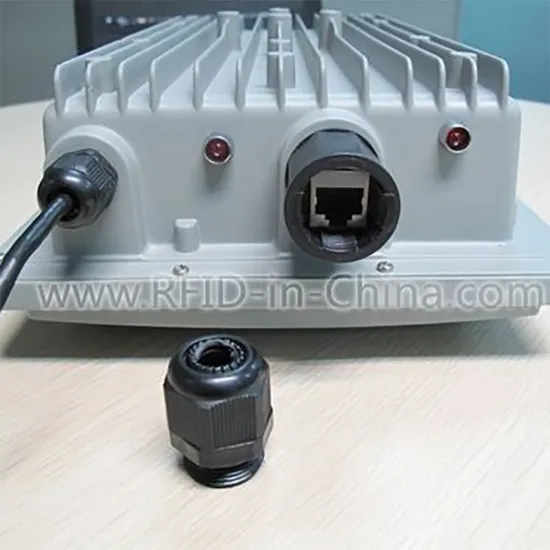

| This 2.45GHz active RFID reader DL9230 is designed for inventory management. With its long read and write range of up to 100m, this active RFID reader is perfectly used in enterprise supply chain management to improve the efficiency of inventory tracking and management. | |
| Important Performance | |
| Working Frequency | ISM 2.4GHz ~ 2.5GHz |
| Identify Direction | Semi-omnidirectional |
| Antenna | 15dBi Built-in antenna |
| Polarization | Vertical Polarization |
| RF Power Range | -30 dBm ~ 0 dBm (set by software) |
| Receiving Sensitivity | -90dBm (set by software) |
| Modulation | GFSK |
| Read Performance | |
| Read Mode | 1) Automatic identifying within effective area (Auto mode) |
| 2) Reading after external trigger (Trigger mode) | |
| 3) Reading under software command (Master-slave mode) | |
| Anti-collision | Read up to 200 pieces of tags simultaneously |
| Read Distance | 0 ~ 100 m adjustable |
| Working Status Indication | Buzzer |
| Communication Performance | |
| Communication Speed | 1000kbps |
| Data Port Interface | |
| Port Available | TCP/IP (RJ45) / USB / RS232 / RS485 / Weigand26 / Weigand34 |
| Electric Parameter | |
| Power Supply | DC+9V ~ +15V, 1A |
| Exterior and Weight | |
| Dimension | 320 mm*200 mm*100 mm |
| Weight | 2.5kg |
| Accessories | 12V/1A adapter, Mounting bracket |
| Working Environment | |
| International Protection | IP65 |
| Working Temperature | -20°C ~ 70°C |
| Storage Temperature | -40°C ~ 85°C |
DAILY RFID is able to design and develop RFID readers and RFID tags in different sizes and shapes for your different requirements. For more info about RFID products, please visit our website: china-rfid.en.made-in-china.com or email us, we will contact you as soon as possible.
