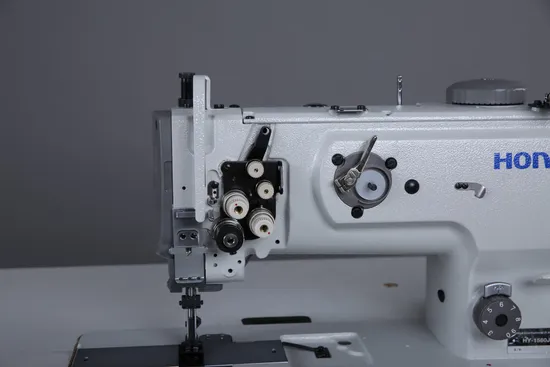

HY-1560J Walking Foot Sewing Machine, Double Needle Compound Feed Sewing Machine

Product Description

WALKING FOOT LEATHER SEWING MACHINE, HEAVY DUTY SEWING MACHINE FOR SOFA HY-1560J Direct drive, double needle compound feed sewing machine

Model No.	HY-1560J
Feeding system	Alternating presser foot, feed dog and needle feeding
Max sewing speed	2000 s.p.m
Shuttle diameter	Ф28mm
Applied needle	DP×17 #18-#23
Thread size	Maximum thread 9 strands nylon
Max stitch length	9mm
Max alternating presser foot	6.5mm (Manually adjusted by knob)
Max presser foot lifting height	16mm
Presser foot lifting function	Presser foot lifting by knee controller
Auto oil system	√
Operation space	255×103mm

Product Description:
1. Internal direct drive motor with low vibration, low noise and low energy consumption.

2. It can adjust the alternating amount of the presser foot by manual through the knob when the sewing reaches the position between up and down step, maximum height is 6.5mm, effectively reduce dense needles, broken thread, broken skin problem and form the prefect stitch.
3. Three parts compound feeding system with alternating presser foot, feed dog and needle feeding guarantees trouble-free and displacement free of the fabric, ensuring the higher sewing quality.
4. It adopts horizontal large hook and standard 3/8 inch needle gauge set.
Typical Field of Application:
Application: topstitch process in the fields of soft furniture and outdoor products, etc.
