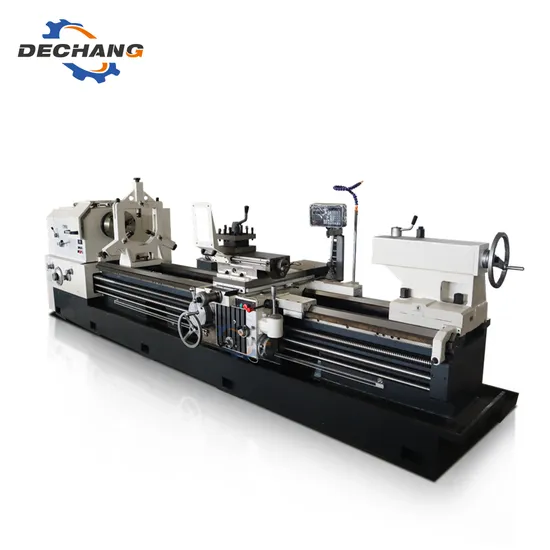

Horizontal Heavy Duty Lathe Machine Cw61100 Cw61125 Universal Precision Metal Lathe Machine

Product Description

Horizontal Heavy Duty Lathe Machine CW61100 CW61125 Universal Precision Metal Lathe Machine
Product Description
FEATURES
One-piece bed adopts high strength iron to ensure rigidity and precision Ultrasonic frequency quenched guide-ways ensure good wear-resistance Headstock gears hardened and ground to achieve precision and low noise Product main technical specification:

Specification	Unit	CW61100L	CW61125L	CW61140L	CW61160L
Swing over bed	mm	1000	1250	1400	1600
Swing over cross slide	mm	610	850	1000	1200
Distance between centers	mm	1500/2000/3000/ 4000/5000/6000	1500/2000/3000/ 4000/5000/6000	1500/2000/3000/ 4000/5000/6000	1500/2000/3000/ 4000/5000/6000
Guideway width	mm	755	755	755	755
Max. load capacity	T	6	6	6	6
Spindle bore	mm	130	130	130	130
Spindle bore taper	-	Metric φ140/MT6	Metric φ140/MT6	Metric φ140/MT6	Metric φ140/MT6
Spindle nose type	-	A2-15	A2-15	A2-15	A2-15
Spindle speed steps	-	FWD. 21 steps	FWD. 21 steps	FWD. 21 steps	FWD. 21 steps
Spindle speed range	rpm	3.15-315	3.15-315	3.15-315	3.15-315
Chuck	mm	φ1000 4-jaw manual	φ1000 4-jaw manual	φ1000 4-jaw manual	φ1000 4-jaw manual
Turret/tool post	-	Manual turret 4 position	Manual turret 4 position	Manual turret 4 position	Manual turret 4 position
Tool shank size	mm	45 x 45	45 x 45	45 x 45	45 x 45
X axis travel	mm	520	620	620	620
Z axis travel	mm	1350/1850/2850/3850/4850/5850	1350/1850/2850/3850/4850/5850	1350/1850/2850/3850/4850/5850	1350/1850/2850/3850/4850/5850
X axis feed grade/range	mm/r	56/0.05-6	56/0.05-6	56/0.05-6	56/0.05-6
Z axis feed grade/range	mm/r	56/0.1-12	56/0.1-12	56/0.1-12	56/0.1-12
X axis rapid traverse	mm/min	1870	1870	1870	1870
Z axis rapid traverse	mm/min	3740	3740	3740	3740
Metric thread grade/range	mm	44/1-120	44/1-120	44/1-120	44/1-120
Inch thread grade/range	T.P.I	31/28-3/8	31/28-3/8	31/28-3/8	31/28-3/8
Module thread grade/range	mm	45/0.5-60	-	-	-
DP thread grade/range	D.P.	30/56-1	-	-	-
Tailstock quill diameter	mm	φ160	φ160	φ160	φ160
Tailstock quill taper	-	MT6	MT6	MT6	MT6
Tailstock quill travel	mm	300	300	300	300
Main spindle motor	kW	22	22	22	22
Rapid traverse motor	kW	1.5	1.5	1.5	1.5
Coolant pump motor	kW	0.125	0.125	0.125	0.125
Width x Height	mm	2000 x 1800	2000 x 1950	2250 x 2050	2250 x 2150
Length	mm	4600/5100/6100/ 7100/8100/9100	4600/5100/6100/ 7100/8100/9100	4600/5100/6100/7100/8100/9100	4600/5100/6100/ 7100/8100/9100
Net weight	T	9.6/10.1/10.7/11.7/12.7/13.7	10.6/11.1/11.7/12.7/13.7/14.7	11.2/11.7/12.3/13.3/14.3/15.3	13.1/13.6/14.2/15.2/16.2/17.2

Detailed Photos
Company Profile
What We Do?
Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
Our Machines Application Fields:
1.Aviation industry: 5-axis machining centers, horizontal and gantry machining centers, precision CNC lathes, etc. can be used to process parts such as aircraft wings, fuselages, empennages and engines
2.Railway locomotive manufacturing industry: CNC lathes, vertical and horizontal machining centers, and five-axis machining centers can process high-speed rail locomotive bodies, axles, wheels and other parts
3.Mold manufacturing: high-speed CNC milling machine, high-precision CNC machining center, precision grinding machine can process automotive panel molds, die-casting molds, forming extrusion molds, etc.
4.Power equipment manufacturing industry: For power generation equipment, heavy CNC gantry milling machines, large floor milling machines, large CNC lathes,
In addition, our machine tool products can also be used in weapon manufacturing, electronic information equipment manufacturing, metallurgical equipment manufacturing.

WHY CHOOSE US?
QUALITY COMMITMENT
Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates.
SERVICE SUPPORT
The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
Company also provide provide online technical support, voice and video guidance.
Our Facotry
MANUFACTURER CAPABILITY
The company has purchased high-precision and high-efficiency advanced equipment from well-known domestic and foreign brands, and the company's machining and production technology level has been continuously improved, resulting in a continuous increase in production capacity. Company provide first-class machines to to meet the needs of domestic and foreign customers.
R&D CENTER
Company collected first-rate professionals in domestic machine tool trade and established long-term technical cooperative relations with other famous machine manufactures. Meanwhile, companmy pays more attention to introducing advanced foreign technology, and makes great efforts to achieve technical renovation and develop market oriented highly sophisticated products.
Company provide comprehensive cnc machines and manual machines to global customers.
Whether you are an end user, a dealer, or a machining factory, you can send your technical requirements, specifications, drawings, and we will provide the most and we will provide the most suitable machine or a comprehensive processing line solution.

After Sales Service
SERVICE SUPPORT
From the moment you become part of the DECHANG, we are fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.
4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost

FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.
