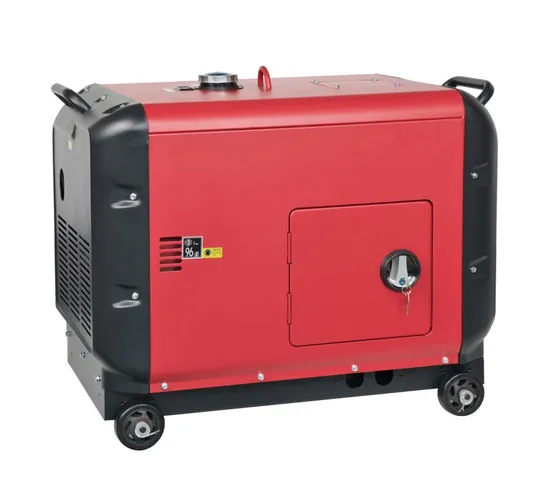

Bronco Silent Air-Cooled 5kw 6kw 7kw Silent Type Diesel Generator
| US$300.00-500.00 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
BN7800DSE
Type
Basic Diesel Generator
Installation Method
Fixed
Stroke
Four Stroke
Cooling Method
Air Cooled
Output Type
AC Three Phase
Speed
Speed
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Engine Type
186f/E
Rated Power
4.2kw
Structure Type
Silent Type
Power Factor
1.0
Fuel Tank Capacity
16L
Noise Level
75dba
Size
960*560*830
20gp in Quantity
48
40hq in Quantity
144
Transport Package
Wooden Carton/Carton Carton
Specification
CE, GS, ISO9001
Trademark
BRONCO, OEM
Origin
Taizhou, Zhejiang, China
HS Code
8502110000
Production Capacity
10000sets/Years
Product Description
FEATURE:
1. With large capacity fuel tank, with fuel guage.
2. Gensets with low oil pressure. Over-voltage, over-loaded protection system, running safely and reliable.
3. Several control panel models: ATS, intelligent digital, normal panel or remote control panel, ect, for clients option.
4. Portable beautiful shape, wiht wheel and handle.
5. Anti-shock design.
6. Single phase or three phase alternator for clients option.
7. The output power can be enlarged by fixed with engine BN186FA according to clients request.
8. ISO2000-9001, CE, GS approval.
9. The dimension is the outer sizes of the packages.
DIESEL GENERATOR-BN5800DSE
SPECIFICATION:
| SILENT DIESEL GENERATOR | BN5800DSE/C | BN5800DSE/D | ||||||
| Engine model | BN186F/E | BN186FA/E | BN186F/E | BN186FA/E | ||||
| Rated frequency (HZ) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated voltage (V) | 230 | 240/120 | 400/230 | 420/240 | 230 | 240/120 | 400/230 | 420/240 |
| Rated current (A) | 23.5 | 20.8/41.7 | 9.2 | 8.3 | 19.5 | 20.8/41.7 | 9.2 | 8.3 |
| Rated output power (KW) | 5.5 | 6 | 5.5 | 6.0 | 4.5 | 5 | 5.5 | 6.0 |
| Max.output power (KW) | 6.3 | 7.6 | 6.3 | 7.6 | 5.0 | 5.5 | 6.3 | 7.6 |
| Rated rotation speed (RPM) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
| Power factor (cosØ) | 1 | |||||||
| Bore×Stroke(mm) | 86×70 | 86×72 | 86×70 | 86×72 | ||||
| Compression ratio | 19:01 | |||||||
| Starting system | Recoil starter/E-starter | |||||||
| Rotation direction | clockwise | |||||||
| Lubrication system | pressure splashed | |||||||
| Displacement | 406CC | 418CC | 406CC | 418CC | ||||
| Fuel consumption(g/kw.h) | <273/286 | |||||||
| Fuel type | (summer)0#,(winter)10# | |||||||
| Lube oil type | SAE-10W30(above CC grade) | |||||||
| Structure type | silent | |||||||
| Starting system | Electric starter | |||||||
| Fuel tank capacity(L) | 16 | |||||||
| Oil capacity(L) | 1.65 | |||||||
| Noise level (DB) | 75 | |||||||
| Overall dimension (MM) | 960×570×760 | 960×570×760 | 960×570×760 | 960×570×760 | ||||
| Net weight (KG) | 165 | 165 | 165 | 165 | ||||
1Q:Are you a factory or trading company?
A: We are a factory.
2Q:Where is your factory located?
A: Our factory is located in Binhai industry,Taizhou city, Zhejiang Province, China.
It's near Ningbo port.
3Q:Can you accept OEM?
A:Yes, we can accept OEM.
4Q:What's your delivery time?
A:Normally 30 days for container order.
5Q:How about quality control in your factory?
A: Our QC Department take the strictly quality control for every spare parts and whole machine.
