Compact Vertical Milling Machine with Enhanced Travel Specifications

Product Description

Product Description

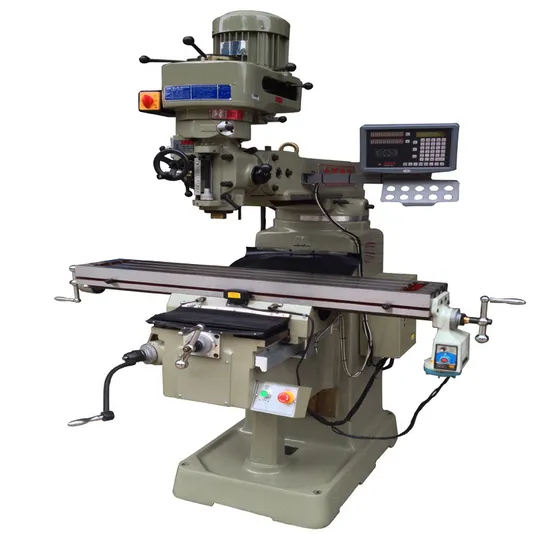

Vertical and Horizontal Turret Milling Machine Fresadora 4HW 5HW Metal Universal Milling Machine
1. Our Turret Milling Machine boasts an intelligently engineered construction, ensuring top-tier machining capabilities for tasks such as drilling, boring, as well as milling of flat, inclined surfaces, and slots. With an array of attachments, you can effortlessly expand its functionalities to encompass helical slot milling, round surfaces, racks, gears, and splines.2. Engineered for excellence, the Rectangular guide way on the Y-axis is crafted to deliver impeccable rigidity and stability, while the Radial Milling Machine saddle is enhanced with TF wear-resistant material for prolonged durability and reliability.3. Experience precision and speed with our high-performance milling head sourced directly from Taiwan, offering unmatched precision.4. The slide way and table surface have been expertly hardened to ensure long-lasting performance and durability during intensive operations.5. Our specialized tools ensure precise machining of the T-slot, intentionally designed not to extend beyond the table edge. This design not only enhances the rigidity but also contributes to an aesthetically pleasing machine appearance. 6. Meticulously hand-scraped slide ways maintain the machine's high precision and ensure smooth, seamless movement.7. The XYZ axis screws, crafted in Taiwan, stand as a testament to quality, ensuring durability and precision in every operation.8. Our innovative XY screw, featuring a dual nut mechanism, facilitates effortless adjustments between the screw and nut, enhancing ease of use.9. A robust, precision-engineered XY screw bracket, designed as a single base, offers exceptional accuracy and rigidity.10. Adhering to the highest safety standards, our advanced electro system is meticulously designed to comply with CE standards, guaranteeing safe and efficient use.
Detailed Photos

Specifications	Units	4HW	5HW
Table size	mm	1270x254	1370x305
Table travel	mm	780/420/400	810/420/400
T slot(number-width-pitch)	mm	3-16-65	3-16-65
Spindle taper		(V) R8/ISO40 (H) ISO40	(V) R8/ISO40 (H) ISO40
Spindle speed range	rpm	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps
		Optional:variable 65-4000	Optional:variable 65-4000
Spindle travel	mm	127	127
Spindle feed range	mm	0.04,0.08,0.15 (3 steps)	0.04,0.08,0.15 (3 steps)
Distance between spindle axis and table surface	mm	0-400	0-400
Main motor power	kw	2.2(V)3(H)	2.2(V)3(H)
Head rotation (left - right )	°	±90°	±90°
Head rotation (front - rear)	°	±45°	±45°
Weight	kg	1750	1850
Overall dimension	mm	1550x1650x2250	1550x1650x2250

1. This robust, heavy-duty model is constructed from premium-grade Meehanite casting, promising long-term endurance and strength. 2. With solid rectangular slideways dedicated to the Y-axis, our machine ensures superior stability and precision. 3. Equipped with fully adjustable dovetail slideways across all axes, this machine offers unparalleled versatility and precision. 4. Experience effortless functionality with right-left handed rotation, tailored for diverse applications. 5. Enjoy high concentricity precision, measured at less than 0.01mm within the spindle sleeve, thanks to the superior taper roller bearings. 5. Featuring an automatic spindle sleeve feed, our machine simplifies operations and enhances productivity. 6. For your safety and convenience, the main switch includes motor protection, a right/left handed rotation switch, and an emergency-stop button. 7. Our machine represents an exceptional balance of cost-efficiency and lasting value, designed to meet your operational needs.
