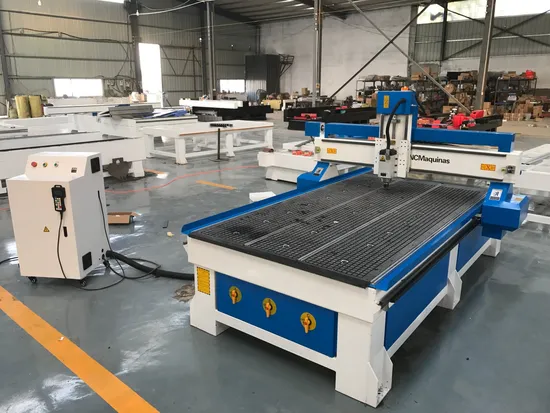

Ultimate CNC Wood Carving Machine with Water Cooled Spindle

Product Description

This machine is used for the produce of the wooden door . Performance parameters:

Working travel	X axis	1300mm
	Y axis	2500mm
	C axis	200mm
Table structure		Vacuum table and T slot
orbit		HIWIN or PMI square orbit
Transmission type		X,Y Rack,Z Ball Screw
Repositioning accuracy		±0.05
Working accuracy		±0.05
Max air move speed		45000mm/min
Max working speed		20000mm/min
Spindle parameters	Type of cooling	air cooling spindle
	power	4.5kw/3.5kw /6.5kw air-cooled spindle
	speed	0-18000r/min
inverter		5.5kw Sunfar inverter
Drive system		YAKO-YKA2811MA
Command code		G code
Control system		WEIHONG-NK105/Syntec
Oiling system		Manual
Working voltage		AC380V/3PH/50HZ

Guarantee:
12 months for the whole machine (not include spindle, spindle: 6 months). Within 12 months under normal use and
maintenance, if something is wrong with the machine, you will get spare parts for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service for the lifetime of the machine.
Technical support:
1. 24/7 Technical support by phone, email, or MSN/Skype
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
4. If you are unable to install the machine yourself, we can send two engineers to your factory for assembly, trial running, training, and after-sales services. You should provide round-trip air tickets, local accommodation, meals, transportation, and communication.
Additionally, the subsidy for the two engineers is USD 200/day/person.
After sales services:
Normal machines are properly adjusted before dispatch. You will be able to use the machines immediately.
You can receive free training advice for our machines at our factory. You will also get free suggestions, consultations, technical support and service via email/fax/telephone, and lifetime technical support.
Applicable industries and materials:
1.Furniture: Wooden doors, cabinets, plates, office furniture, solid wood furniture, tables, chairs, doors, and windows.
2.Wood products: Speakers, game cabinets, computer tables, sewing machines, musical instruments.
3.Plate processing: Insulation, plastic, chemical pieces; PCB; car body parts, bowling alleys, stairs; anti-fold special boards, epoxy resin, ABS, PP, PE.
4.Decoration industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic, copper, and aluminum, and other soft metal plate engraving and milling cutting.
Performance:
1. Four spindles can perform four different processes simultaneously, akin to an economical auto-tool changer CNC machine center with two tools.
2. The vacuum pump securely holds the carving materials, making operations more reliable and convenient.
3. Leading rack rotation with high speed and strength. Air speed can reach 50m/min, and when working on wave board, it can reach 25m/min.
4. Our software is compatible with Type3, ArtCAM, Castmate, Weitai, and more.
5. Advanced USB connection with DSP operating system provides fast and smooth processing; our routers can operate completely offline.
6. The entire welding structure undergoes tempering treatment, making it solid and long-lasting.
