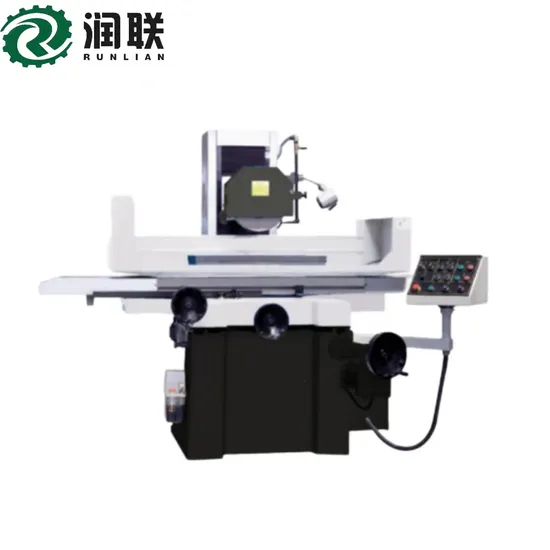

Sga3063ahd High Precision Saddle Moving Surface Grinding Machine Grinder
Basic Info.
Model NO.
SGA3063AHD
Type
Surface Grinding Machine
Processing Object
Metal, Ceramics Flat Surface
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
End Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001, SGS
Condition
New
Table Size
305X635mm
Max.Longitudinal Travel
765mm
Cross Tranal
340mm
Max.Distance From Spindle Center Totable
580mm
Magnetic Chuck Size
300X600mm
Speed of Table Longitudinal Movement
7-23
Auto Feed
0.1-8mm/Min
Rapid Speed
990mm/Min
Feed of Handwheel
0.02mm/Div
Grinding Wheel Speed
1450rpm, 1750rpm
Grinding Wheel Size
350X40X127mm
Spindle Motor
5.5kw
Hydranlic Motor
2.2kw
Cooling Pump Motor
0.125kw
Max. Loading Capacity of Table
270kg
Transport Package
Plywood Packaging
Trademark
OEM
Origin
China
HS Code
8460291100
Production Capacity
2000unit/Year
Packaging & Delivery
Package Size
234.00cm * 222.00cm * 215.00cm
Package Gross Weight
2600.000kg
Product Description
SGA3063AHD High Precision Saddle Moving Surface Grinding Machine Grinder
Product Description
Structural Features
--Cross board layout
--High precision sliding screw
--High strength cast iron foundation
The machine adopts the cross plate layout, and the transverse guide rail is attached with teflon foft belt. Closed hydraulic system is adopted for the movement of the worktable. The forward and backward feed can be manually fed or the screw can be driven by the motor to automatically feed intermittently. The downward movement of the grinding head can be achieved by using the lifting motor for quick lifting(AHR) or the servo motor for quick lifting and automatic feeding(AHD), which can also be accomplished manually. The machine adopts precise angular contact rolling bearing, high rigid sleeve structure, the overall quality of the machine is stable, smooth operation.
Product Parameters
| Description | Unit | SGA-3063AH | SGA-4080AH | |
| SGA-3063AHR | SGA-4080AHR | |||
| SGA-3063AHD | SGA-4080AHD | |||
| Table size (w*L) | mm | 305x635 | 406x813 | |
| Max.longitudinal travel | mm | 765 | 910 | |
| Cross travel | mm | 340 | 450 | |
| Max.distance from spindle center to table | mm | 580 | 580 | |
| Magnetic chuck size | mm | 300x600 | 400x800 | |
| Speed of table longitudinal movement | m/min | 7-23 | 7-23 | |
| Table transverse movement | Auto feed | mm/min | 0.1-8 | 0.1-8 |
| Rapid speed | mm/min | 990 | 990 | |
| Feed of handwheel | mm/div. | 0.02 | 0.02 | |
| Wheelhead vertical movement | Auto feed | mm/stroke | 0.005/.001/0.02/0.03/0.04/0.05(only for AHD model) | |
| Rapid speed | mm/min | 460 (only for AHR/AHD model) | ||
| Feed of handwheel | mm/div. | 0.005 | ||
| Grinding wheel | Speed | rpm | 1450(50hz); 1750(60hz) | 1450(50hz); 1750(60hz) |
| Size (OD*W*ID) | mm | 350x40x127 | 350x40x127 | |
| Spindle Motor | kw | 5.5 | 5.5 | |
| Hydralic motor | kw | 2.2 | 2.2 | |
| Cooling pump motor | kw | 0.125 | 0.125 | |
| Elevating motor | kw | -------(AH mode) 0.25(AHR mode) 0.5 (AHD mode, servo motor) | ||
| Cross feed motor | kw | 0.04 | 0.04 | |
| Max.loading capacity of table (include magnetic chuck) | kg | 270 | 500 | |
| Total rated power | kw | 9 | 9 | |
| Height of machine | mm | 1890 | 1890 | |
| Floor space (L*W) | mm | 2900x2200 | 3600x2400 | |
| Gross weight | kg | 2600 | 3500 | |
| Package dimension (LxWxH) | mm | 2350x2220x2150 | 2850x2270x2180 | |
Related products
Company Profile
Packaging & Shipping
FAQ
Q1. What is the payment Terms ? A1 : :L/C , T/T ,, Western Union Q2. What is your trade terms? A2 : FOB, CFR and CIF all acceptable. Q3.When is the delivery time? A3: The standard machine could be arranged for delivery within 3 days after your full payment, It takes longer time for customized the machine. Q4: What's your Minimum Order Quantity? A4: Any order quantity is warmly welcomed. Q5: What is your MOQ of this item? A5: 1 set Q6:Could you accept sample order? A6: Yes, we accept sample order for your evaluation.
