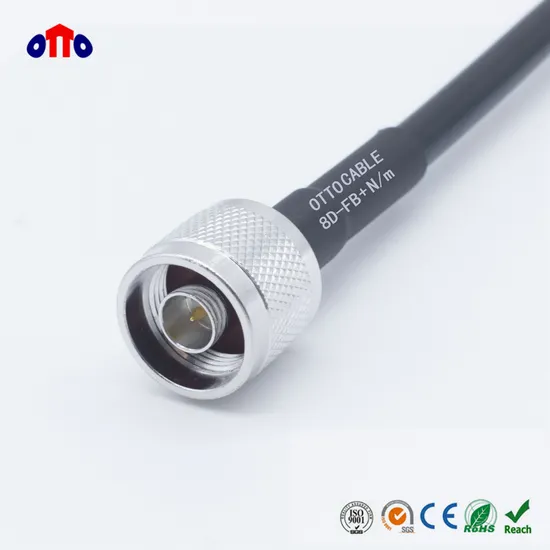

Low Loss 50 Ohm RF Coaxial Cable 8D-FB for Cellphone Signal Repeater/ DAS
| US$0.50-1.50 | 5,000 Meters (MOQ) |
Basic Info.
Model NO.
8D-FB
Type
Coaxial
Material Shape
Round Wire
Conductor Type
Solid
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS
Model
8d-Fb
Brand
Ottocable
Ottocable
8d-Fb RF Coaxial Cable
Inner Conductor
2.80CCA/Bc
Dielectric
7.80 Foam PE
First Shield
8.00 Bonded Aluminum Foil
Second Shield
8.70 Al-Mg Wire Braid/Tc/TCCA
Jacket
10.60 PVC/PE/LSZH
Jacket Color
as Per Request
Impedance
50ohm
Origin of Place
Zhejiang, China
Transport Package
as Per Request
Specification
CE, RoHS
Trademark
OttoCable
Origin
Zhejiang, China
HS Code
8544200000
Production Capacity
150km/Day
Product Description
8D-FB
Construction
| Item | Material | Diameter(mm) | Remarks |
| Inner Conductor Dielectric First Shield Second Shield Jacket | Bare Copper /CCA Foam PE Bonded Aluminum Foil TC Wire Braid/AL/TCCA PVC/PE/LSZH | 2.80 7.80 8.00 8.70 10.60 | Per customer's requirements: The second shield could be 128,144 or 168 TC wires braiding; Jacket could be PVC,PE or LSZH; |
Electrical Characteristics
| Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Dielectric strength(kV) V.S.W.R Return Loss Screening Effectiveness(db) Min. Bending Radius (mm) Operating Temperature(0C) | 50±3 82±2 82.0 1.6 ≤1.3 ≥20 ≥80 55.0 -25 to +70 |
Attenuation (@200C)
| Frequency(MHz) | Max Attenuation(dB/100m) |
| 1200 1500 1800 1900 2000 2200 2500 | 17.4 19.8 22.1 23.5 25.4 25.9 27.6 |
