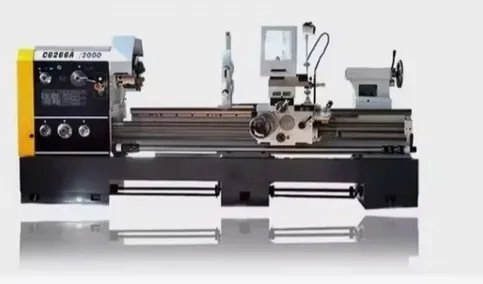

China Metal Lathe Machine Price C6266A Cq6280 Horizontal Metal Lathe Machinery with CE
| US$12,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
C6266A CQ6280
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
China Metal Lathe Machine Price C6266A Cq6280 Hori
Swing Over BedTmm
660
Swing Over Cross SlideTmm
440
Swing in GapTmm
900
Length of GapTmm
250
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8458190000
Production Capacity
200
Packaging & Delivery
Package Size
321.00cm * 123.00cm * 160.00cm
Package Gross Weight
3065.000kg
Product Description
China Metal Lathe Machine Price C6266A CQ6280 Horizontal Metal Lathe Machinery with CEProduct Description
Standard accessories:
Reduction sleeve, centers, 3 jaw chuck, 4 jaw chuck, face plate, steady rest, follow rest, machine base, work lamp, foot brake, coolant, change gears, tool box(include tools 1 set)
Technical Specifications:
| Specifications | Unit | C6266A | CQ6280 |
| Swing Over Bed | mm | 660 | 800 |
| Swing Over Cross Slide | mm | 440 | 570 |
| Swing in Gap | mm | 900 | 1035 |
| Length of Gap | mm | 250 | |
| Distance Between Centers | mm | 1500/2000/3000 | 1500/2000/3000 |
| Width of Bed | mm | 400 | 400 |
| Spindle Nose | D1-8 | D1-8 | |
| Spindle Bore | mm | 105 | 105 |
| Taper of Spindle Bore | mm | Φ113(1:20 | Φ113(1:20 |
| Spindle Speed Step | rpm | 16 | 16 |
| Range of Spindle Speed | 25~1600 | 25~1600 | |
| Compound rest travel | mm | 230 | 230 |
| Cross slide travel | mm | 368 | 420 |
| Max. Section of Tool | mm | 25x25 | 25x25 |
| Leadscrew Pitch | 12 or 2T.P.I | 12 or 2T.P.I | |
| Longitudinal Feeds Range in Metric Lead Screw | mm/rev | 0.044~1.48 (25 kinds) | 0.044~1.48 (25 kinds) |
| Cross Feeds Range in Metric Lead Screw | mm/rev | 0.022~0.74mm/rev (25 kinds) | 0.022~0.74mm/rev (25 kinds) |
| Threads metric pitches | mm | 0.45~120 (54 kinds) | 0.45~120 (54 kinds) |
| Threads imperial pitches | T.P.I | 7/16~80(54 kinds) | 7/16~80(54 kinds) |
| Threads Diametrical pitches | DP | 7/8~160(42 kinds) | 7/8~160(42 kinds) |
| Threads Module pitches | MP | 0.25~60 (46 kinds) | 0.25~60 (46 kinds) |
| Tailstock quill diameter | mm | 90 | 90 |
| Tailstock quill travel | mm | 235 | 235 |
| Tailstock quill taper | MT5 | MT5 | |
| Main Motor Power | kw | 7.5(10 HP) | 7.5(10 HP) |
| Coolant Pump Power | kw | 0.1(1/8HP) | 0.1(1/8HP) |
| Overall Dimension | mm | 3210/3710/4710×1230×1600 | 3210/3710/4710×1230×1670 |
| Packing Size (L×W×H) | mm | 3240/3740/4740×1140×1840 | 3240/3740/4740×1140×1910 |
| Net Weight | kg | 3065/3345/3710 | 3175/3455/3820kg |
| Gross Weight | kg | 3535/3835/4310 | 3695/4005/4495kg |
Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
