Shoe Repair Machine Pounding Machine Heel Machine Shoe Making Machine for Shoe

Product Description

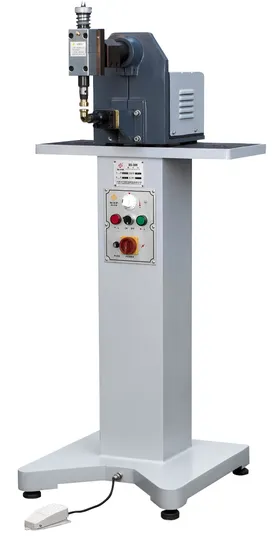

DS-309 Upper Pounding Machine for shoe
This machine is used for pounding and ironing the throat and joint material in uppers.
The swivel nut can adjust the distance between the hammering head and the anvil to meet the varied needs of leather with different thickness.
The hammer anvil may be heated to soften the leather surface.
Through high-frequency pounding by the hammering head, the throat and joint material will look more flat and prettier.
The application of special shock absorption device effectively reduces noise and vibration, which has solved the high noise and large vibration in previous design.
1.brief introduction for functions
model ds309 flat hammering possesses the functions of hammering and electric-thermal ironing.it can fold or hammer and iron the interface of different kinds of leathers.yhe folded edges and interface of the leathers would be flat and beautiful after hammered and ironed, which the manual operation can not compare to.the frequency of the hammering is high up to 2300 times per minute, which creates high efficiency.yhe whole machine system possesses excellent buffer mechanism, and also operation in low noise.this model of machine is widely used in leather manufactory industry.
2.main technical parameter

electric motor	efficiency kw	0.18
	voltage	380
	round speed r/min	2800
electric-thermal effciency	w	80
heating temperature	ºc	180
operating noise	dB	≤83
machine outline measurement	l×w×h	420×600×1450
weight	kg	130
