US$86.00-89.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
CB-B 3.0Tx15.0M
Maximum Lifting Height
>20m
Certification
CE, ISO9001:2000, GS,TUV,SGS
Color
Standard Orange or Be Customized.
Rated Capacity
500 Kg to 30 Ton
Standard Lifting Height
3meters as Standard
Running Test Load
3.75 Ton
Extra Weight Per Meter of Extra Lift
3.7 Kg
Diameter of Loading Chain
10.0 mm
Transport Package
Carton, Plywood Case, Pallet
Specification
500kg to 10ton
Production Capacity
100 Unit Per Day
Product Description

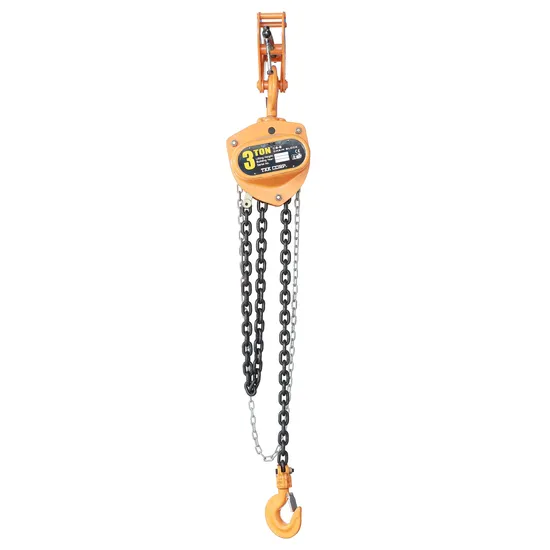

Lifting Machine Chain Block 3 Ton with 15M Lifting Height
Techinical Parameters:
Model | CB-B |
Capacity(ton) | 0.25 | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 7.5 | 10 |
Standard lifting height(m) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 |
Running Test Load(ton) | 0.3125 | 0.625 | 1.25 | 1.875 | 2.5 | 3.75 | 6.25 | 9.375 | 12.5 |
Headroom H(mm) | 280 | 345 | 376 | 442 | 470 | 548 | 688 | 765 | 765 |
Effort to required to lift max. load(N) | 226 | 235 | 245 | 255 | 324 | 363 | 353 | 373 | 380 |
Load Chain Dia. (mm) | Columns | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 | 4 |
Dia+Pitch | 4× 12 | 5× 15 | 6× 18 | 7× 21 | 8× 24 | 10× 28 | 9× 27 | 9× 27 | 9× 27 |
Dimension (mm) | A | 121 | 148 | 172 | 196 | 210 | 255 | 280 | 433 | 463 |
B | 114 | 132 | 151 | 173 | 175 | 205 | 189 | 189 | 189 |
C | 24 | 25 | 30 | 33 | 35 | 40 | 42 | 56 | 56 |
D | 31 | 31.5 | 37.5 | 42.5 | 45 | 50 | 53 | 85 | 85 |
Net Weight(kg) | 6.5 | 9.3 | 12.2 | 16.5 | 19.5 | 32 | 41.1 | 61.6 | 75.7 |
Packing Measurements(l× w× h)(mm) | 23× 16× 15 | 30× 17× 18 | 32× 18× 19 | 37× 20× 24 | 37× 20× 24 | 43× 40× 30 | 47× 44× 35.5 | 62× 47× 39.5 | 53× 51× 46.5 |
Extra Weight per meter of extra lift(kg) | 0.81 | 1 | 1.29 | 1.61 | 1.92 | 2.68 | 4.1 | 5.86 | 7.73 |
Company Profile :
Jiali Machinery Co., Ltd (Jiangsu Jiali Hoisting Machinery Manufacturing Co., Ltd) specializes in manufacturing various types of electric chain hoist,manual chain hoist and related assembly products.Our company has a modern factory of 56,000 square meters,which is four hours' drive from Shanghai Airport and an hour's drive from Nanjing Airport.
Workshop:
Package Details:
Carton boxes are neatly placed in the workshop, and each plywood case comes with operating instruction, inspection report, packing order.
When the capacity reaches 3 ton,we use plywood case.
When you order 3 sets or more quantity,we usually use a pallet to prevent the goods from damage.This will be easy to arrange shipment.
Certificates:
We provide quality, safe and stable products to meet the highest industrial standards.We are ISO9001: 2008 and TUV certified manufacturer, our products are CE, GS, SGS certified, serving all spheres of industry in the world.
International Fair:
We establish a global marketing network with exportation to Germany,Norway,Poland,United States,Canada,Mexico,Peru,Brazil,Argentina,Egypt,Saudi Arabia,South Africa,India,Indonesia, Malaysia and total more than 50 countries and regions.We become both domestic and foreign clients to select TXK hoisting equipment and establish long-term business relationship with us.
7 reasons to trust TXK:
1.Longest history and longevity - TXK is one of the oldest established electric chain hoist manufacturers in China,with almost 20 years.
2.Largest factory and production capability - TXK factory is the biggest factory covering more than 56,000 square meters territory.
3.Widest products and service providing - TXK can provide widest products items include electric&manual lifting equipment.
4.Richest experience in world business - TXK has more than 10 years experience on international trade business.
5.Fastest lead times - TXK factory is equipped with most efficient producing line which handled by skillful workers.
6.Fullest certifications - TXK factory and products are well certified by CE,GS,TUV,ISO,SGS,etc.
7.Highest reputation - TXK products are well sold in more than 50 countries.
FQA:
Q: What's MOQ?
A: MOQ can be 1 set.
Q: How about your payment terms?
A: T/T 100% before production.Or 30% deposit, the balance after B/L copy, we accept T/T and L/C at sight.
Q: What information should I provide if I want to order the products?
A: The information such as the lifting capacity, lifting height, power supply or other specifications you give us will be more appreciated.Inquiry now!
Q: What is your lead time for your goods?
A: Normally within 7 working days after receiving the payment.
