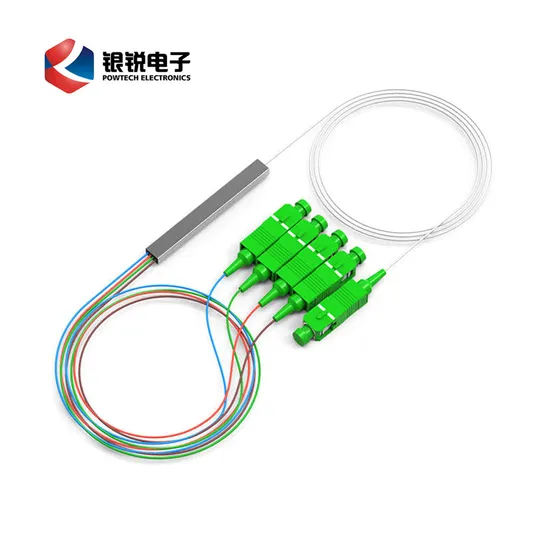

1X4 1X16 Steel Tube G657A2 G652D ISO Fiber Optic PLC Splitter

Product Description

1X2 1X4 1X8 1X16 Steel Tube G657A2 G652D ISO Fiber Optic PLC Splitter
Product Description Optical splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. Siemax' PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.
Application:

1. FTTX networks

2. PON networks

3. CATV links

4. Data Communication

Features:
Low Insertion loss and PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
High Reliability and Stability
Table.1 1xN splitter

Parameter		Unit	Value
Product Type			1x2	1x3	1x4	1x6	1x8	1x12	1x16	1x32	1x64	1x128
Operating Wavelength		nm	1260~1650
Insertion Loss	Typ.	dB	3.6	6.3	7.0	9.4	10.2	12.4	13.5	16.6	20.1	24.5
	Max.	dB	4.1	6.8	7.5	10.0	10.5	13	13.8	17.1	20.8	25.3
Uniformity (Max.)		dB	0.5	0.8	0.8	0.8	0.8	1.2	1.4	1.5	2.0	2.6
PDL(Max.)		dB	0.2	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.5	0.8
Return Loss		dB	≥55(APC type connectors) / 50(UPC type connectors)
Directivity		dB	≥55
Operating & StorageTemperature		ºC	-40~+85

Table.2 2xN splitter

Parameter		Unit	Value
Product Type			2x2	2x3	2x4	2x6	2x8	2x12	2x16	2x32	2x64	2x128
Operating Wavelength		nm	1260~1650
Insertion Loss	Typ.	dB	4.1	6.6	7.2	9.7	10.5	12.6	13.8	17	20.5	24.8
	Max.	dB	4.5	7.0	7.6	10.2	11	13.2	14.5	17.8	21.5	25.8
Uniformity (Max.)		dB	0.8	0.8	0.8	1.0	1.0	1.5	1.5	1.8	2.5	3.0
PDL(Max.)		dB	0.2	0.3	0.3	0.3	0.3	0.3	0.3	0.5	0.6	1.0
Return Loss		dB	≥55(APC type connectors) / 50(UPC type connectors)
Directivity		dB	≥55
Operating & StorageTemperature		ºC	-40~+85

Detailed Photos
Production Process
Packaging & Shipping
Company Profile
POWTECH is a high-tech enterprise who specialzes in manfuacturing electric transmission, distribution and telecom line materials like: ABC clamp, piercing insulation connector, insulators, surge arresters, dropout fuse, isolation switch, preformed guy grips, stainless steel banding, FTTH fittings, PLC splitter, patch cord, cross arm, stay wire and all transmission line fittings. Since our establishment in 1994, we dedicated ourselves to serve our partner with one-stop service, professional service, quality product, factory acceptance test, installation training, onsite guide and many value-added services.?
After more than 20years' development, we are certified by ISO9001, ISO14001, SGS, FCC, CE, RoHS and by customer-appointed lab test suthorities etc.
With the belief, there's no small or big customer, every customer deserve good srevice. We are willing to support all of our customers grow and prosper.
