Industrial Conduit Insulative Corrosion-Resistance PVC CPVC Conduit Pipe Extrusion Molding Machine Plastic Pipe Making Machine

Product Description

Prominent Advantages
The main engine of 66 Plastic Machinery adopts the high-speed and high-efficiency gearbox reducer of domestic first-class brand,which has low noise and stable performance and can adapt to long-term high-speed operation.
The screw barrel is carefully researched,designed and customized to ensure high speed,high efficiency,super wear resistance and 24-hour extrusion capacity of single machine which is far ahead in the same industry. The special molding machine for plastic roofing tile has been updated repeatedly,and the running parts are made of all high wear-resistant materials,which has good and stable molding effect,can continuously increase the output along with the main engine,and has a service life ahead of the same industry.
The electrical components of 66 Plastic Machinery are made of famous brands at home and abroad,such as Siemens,Fuji,ABB,Schne1der and Inovance,etc.The industrial control system is durable and has strong power grid impact resistance.
Technical Datum

Main Technical Parameters for PVC/CPC Pipe
Standard Specifications Customized Service is available	Pipe Diameter: 16~800(mm)
	Pipe Thickness: 3~12(mm)
Supporting Host	SJZ110/220/SJZ92/188/SJSZ80/156+SJSZ65/132
Total Power	91~265KW
Max Output	110~1000Kg/h

Main Technical Parameters for PE/PP/PPR Pipe
Standard Specifications Customized Service is available	Pipe Diameter: 16~2000(mm)
	Pipe Thickness: 3~27(mm)
Supporting Host	SJZ110/220/SJZ92/188/SJSZ80/156+SJSZ65/132
Total Power	70~1300KW
Max Output	80~8000Kg/h

Related Components

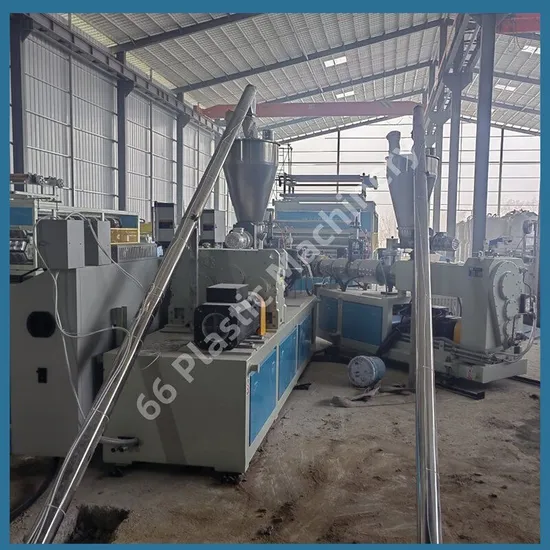

The plastic pipe production line is composed of conical twin-screw extruder,power tube module,vacuum setting box,cooling spray box,tractor,ring cutting machine,stacking rack,etc.Supporting auxiliary machines include plastic mixing unit,crusher,flour mill,expanding machine,etc.Threading machine is a special equipment for efficientlyproducing high-quality hard pipes.It's composed of conical twin-screw extruder,vacumm sizing system,traction and synchronous cutting mechanism.Each part of the mechanism can be controlled independently,and the overall coordination function can be realized,which effectively ensures the quality of plastic pipes,and has the advantages of high production efficiency,low energy consumption and stable performance.
Output(Electric Power Pipe) Advantages And Applications
PVC electrical conduit has excellent corrosion resistance,good sanitary performance and long service life.It has unique toughness,excellent scratch resistance and outstanding low temperature resistance.It has good fracture toughness of rapid crack growth.Pipeline installation and connection are convenient and reliable.It's mainly used for indoor threading,threading in walls,underground embedding and other communication lines.

Considerate After Service
66 Plastic Machinery has an experienced after service team, which can help you to solve the plant planning,layout,power matching and solutions,and more importantly,it can provide you cost-effective formula solutions according to market requirements.
1.Loading and Delivery

2.Quantity and quality guarantee
a. Quantity/Quality discrepancy to destination port during transportation: In case of quality/quantity discrepancy to destination port in transportation, buyer should file claim within 30 days after the arrival of the cargo at destination port.Insurance company and shipping company will be responsible for any discrepancy of the cargo caused by shipping company and other transportation organization and/or post office.
b.Guarantee period and after service:1 year since date of bill of lading.Within guarantee period,66 Plastic Machinery will provide free spare parts in case of quality discrepancy caused by us.If the malfunctions are caused by buyer's incorrect operations,we will charge for related spare parts.
c.Long term service: Charged spare parts and long term technical guide are available.
3.Overseas After Service
a.After machines are delivered to destination plant,buyer has to finish preparation work such as electricity supply,water supply,labors and cranes,etc.
b.66 Plastic Machinery will apply visa for engineers who are responsible for overseas lively guide of machine installation and testing.
c.Buyer will pay for round way air tickets for engineer and afford expenses generated such as visa commission charge,room and board,allowance of USD100/day for each engineer.
d.Engineer will supply buyer's labors free lively training lessons.

Adhering to the principle of people-oriented,winning with sincerity and the concept of win-win,66 Plastic Machinery is looking forward to cooperating with all partners at home and abroad to create a brilliant future.
