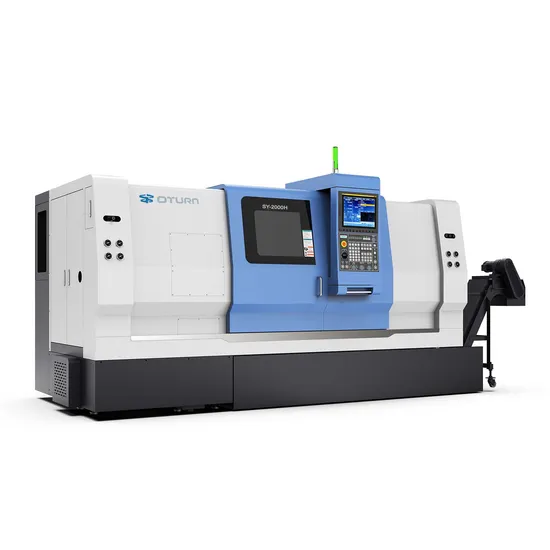

High Quality Oturncnc Sy2000h Automatic Turning CNC Hydraulic Chuck Horizontal Slant Bed Lathe with CE/ISO

Product Description

Product Description
The machine adopts an optimized 30-degree inclined bed structure design, and has high precision, super rigidity and excellent cutting stability. High-strength HT300 cast iron one-piece strong structure bed, the application of finite element analysis, the overall mechanical rigidity and stability are excellent, and can maintain long-term reliable precision, improve processing stability and tool life, stress relief treatment improves precision stability, High-strength hard rail structure, the transmission system adopts screw pre-tensioning design to improve the performance of reflecting rigidity. Main features of this machine tool: 1. The spindle unit is an independent sleeve type. The spindle system has undergone strict dynamic balance testing and has high precision, good accuracy retention, small thermal deformation, and good thermal stability. The Max. speed can reach 2000rpm, and the nose deflection accuracy is within 0.003MM. The front end of the shaft uses a large-diameter, high-precision double-row roller bearing with a combined angular contact ball bearing structure. The optimal span two-point balance support design can withstand radial and axial loads, and can also provide users with high-speed precision work. It can also perform low-speed and heavy cutting, and is especially suitable for mass production of products with complex shapes, high precision requirements, and high smoothness.
2. High rigidity servo power turret. It helps the servo turret's rapid and accurate tool changing performance, and when coupled with the power milling of a high-speed power axis, it achieves excellent turning and milling combined processing capabilities. The tool holder is installed using a high-rigidity BMT installation interface, and the power transmission shaft is driven by a servo spindle motor.
3. The machine tool is equipped with hard rail guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best
It has the best precision and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method, which can minimize the thermal displacement and greatly improve the processing accuracy.
4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
5. The hydraulic tailstock has a high rigidity structure and an integral tailstock, which can eliminate vibration and improve stability. The sleeve expansion and contraction is realized by hydraulic cylinder, which is convenient, fast and reliable.
6. It adopts Taiwan rotary chuck cylinder and optional automatic chip removal device, which can greatly reduce the labor intensity of the operator and achieve safe and efficient production. The above functional components can be programmed and controlled, and various components can be designed and installed according to the special requirements of the user. A special fixture. Product Parameters

Item Model	Name	Unit	SY2000M
Travel	The largest diameter rotating bed	mm	Φ700
	Max. processing diameter	mm	Φ520
	Max.Swing Over Cross Slide	mm	Φ350
	Max. processing length	mm	1820
Spindle motor Hydro Cylinder Chuck	Spindle nose	type	A2-11
	Max. speed of spindle	rpm	2500
	Hydraulic Cylinder/Chuck	lnch	12″
	Spindle hole diame	mm	Φ117
	Bar diameter	mm	Φ102
	Spindle motor power	kw	26
	Spindle motor power(1:2)	Nm	496-706
X/Z Axis Feed	X/Z travel	mm	310/1930
	X/Z axis rail specification	spes	45
	X/Z shaft wire specifications	mm	4012
	X/Z motor power	kw	2.9
	Positioning accuracy	mm	±0.005
	Repeat positioning accuracy	mm	±0.003
	X/Z axis moving fast	m/min	24/24
Servo Drive Cutter	The tool tower type	pcs	BMT65-12T
	Power cutter tower motor	KW/Nm	5.0/47.7
	Max. speed of	rpm	5000
	The knife biock specifications	mm	25X25
	Circular cutter holder specification	mm	Φ50
	The adjacent tool change time	sec	0.2
Tails Tock	Programmable hydraulic tail seat	/	Hydraulic tail seat
	The biggest stroke of the tail	mm	1680
	Morse Slide way	type	Moss 5 #
	Sleeve diameter	mm	Ф100
	Sleeve travel	mm	100
Mechanical Size	Machine size	mm	4800x2110x2100
	Machine Weight	kg	8900
Other	Cutting fluid tank volume	L	400
	Cooling water pump power	W	750
	Volume of hydraulic unit box	L	50
	Hydraulic oil pump motor power	kw	1.5
	Volume of lubricating oil tank	L	2
	Auto lube pump motor power	W	50
