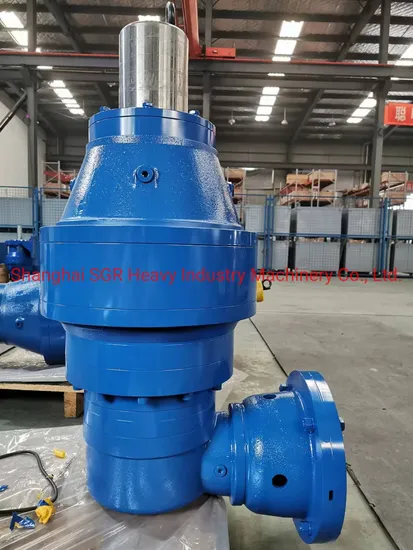

Brevini Flange Input Planetary Gearbox Speed Reducer Female Splined Output

Product Description

Brevini Flange Input Planetary Gearbox Speed Reducer Female Splined Output
1. Ratio range: 3.15-9000
2. Input power: 0.25-55KW
3. Permit torque rang: ≤ 800000N. M
4. Output speed: 0.425-445 r/min
5. Structure mode: Possibility of the flange, foot, or shaft mounting solutions
Characteristic of Brevini Planetary Gear Reducer :
1. The wide and comprehensive range of N series for industrial applications
2. Low-speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low-speed shaft bearing Data Sheet :

Torque range	1000 ... 540000 Nm	Input	IEC Flange
Mechanical rating (n1 = 1500 min-1)	up to 200kW		Electric motor
Gear ratios	3.15 ... 5000		Solid input shaft with or without fan cooling - inch or metric dims.
Gear unit versions	In line	Applicable AC motors	Integral motors and brake motors
	Right angle (with bevel gear set)		IEC-normalized motors and brake motors
Mounting type	Foot		Single and dual speed motors
	Flange mounted	Main brake features	DC and AC supply
	Torque-arm		Faster brake reaction through electronically controlled rectifier
Output shaft options	Solid shaft	Main motor options	Thermistors and thermostat sensors
	Splined shaft		Independent forced cooling
	Female splined shaft		Line driver and push-pull incremental encoder
	Hollow shaft with shrink disc

Shipping :
According to Customer requirement, we delivery products by different transport, Sea shipping, Air Transportation / Express or Truck transportation etc.
You Appoint, We Service!
Our Services With all our activities DNV-ISO 9001, SGS -certified, we stand for top-quality service. Entrusting your gearboxes to the care of our Services.
Help protect your gearbox from wear and grinding, SGR gearbox converts torque reliably and effi­ciently.
We customize our SGR planetary gear units, double enveloping worm gearbox, helical gear motor, modular design helical gear unit, worm gearbox, cycloidal gearbox etc to fit your application and meet your needs.
These features enable a reliable and safe service life of over 200 000 operational hours.
Our customers have been placing their trust in SGR gear units since 1997. More than 500 000 gear units of our gearbox are in use reliably around the world, in many cases under very harsh conditions.

Our Honour and Patent :
ABOUT US:
Shanghai SGR Heavy Industry Machinery Co., Ltd.(formerly known as Shanghai Great Wall Reducer Co., Ltd. ) (sgrgear.en.made-in-china.com) has accumulated rich original designing & manufacturing experience after being founded in 1996. SGR brand planetary gear reducer has won honor of "Science and Technology Advancement Prize" awarded by the National Speed Reducer & Variator Industry Association.
We produce planetary gear units, planar double-enveloping worm gear speed reducers (cone worm gear reducer), helical-bevel gear motors, worm gear reducers, helical worm gear motors, helical gear motors and many other types of gear units. SGR gear motors and gear units have given satisfactory performance in different industrial applications, including metallurgy, mineral, architecture, shipbuilding, petroleum combination, aviation space-flight, lift routeing, textile mechanic, cement, pharmaceuticals, pumps, general mechanic and other domain.
With the advantage of high quality & competitive price, SGR gear motor and gear units are widely welcomed in the domestic market and exported to Southeast Asia, Middle Asia, North America and European countries etc.
With the excellent testing program, SGR company is always keeping up with the most advanced technology in the world. We have already acquired DNV-ISO9001: 2008 certificate,SGS, CE etc and a patent on SGR branded gearbox.
We have adopted advanced CAD and CIMS in design & manufacture, which help our engineers develop 3 - 5 series of new efficient products each year. All staff in sales & service department are well trained termly, thus you will be always warmly welcomed and understood by our company.
