Restaurant Single Wet Wipes Wet Tissue Wet Machine

Product Description

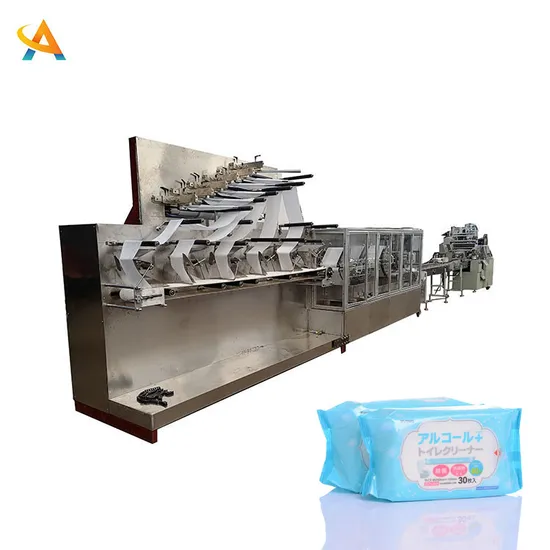

High Speed Full-Auto Wet Wipes Machine (30-120Pcs/Pack) Baby Wet Wipes Machine Kitchen Wipes Wet Tissue Paper Making Machine
Equipment performance and characteristics:
1. Range of use: 30-120 pieces/bag. Baby wipes, industrial wipes, kitchen wipes, household wipes,Makeup remover wipes, etc.
2. Working principle: (1 roll material loading → online slitting → automatic folding → automatic liquid addition → automatic cutting → automatic stacking → automatic counting) → wet wipes waiting. Material conveying → (into the packaging machine → roll film placement Roll → print production date → punch → label → bag making → back seal → pin horizontal seal) → finished product output, the whole line is completed automatically.
3. The equipment is equipped with a set of 1250mm slitting machine, which can cut large rolls into the desired width of wet wipes, and can cut up to 6/12 wet wipes.
4. The equipment is equipped with 6/12 sets of folding devices, which can fold N, V, and C types; the equipment is equipped with servo fixed-length cutting and servo automatic stacking, which can be set freely on the touch screen.
5. Track: Realize the specific speed connection between the folding machine and the packaging machine.
6. reciprocating packaging machine consists of: reciprocating packaging machine + coding machine + punch labeling machine;
7. Coding machine: It uses ink wheel to code, and the coding position is controlled by an independent servo motor, which can be selected on the touch screen.
8. Punching labeling machine: It is composed of a punching machine combined with a labeling machine, both of which are driven by an independent servo motor, which can be selected on the touch screen.
9. Reciprocating packaging machine: the width and height of the bag forming machine can be adjusted according to actual requirements; the horizontal sealing pin mechanism is composed of reciprocating pin holders; the back seal and horizontal seal are composed of independent PIDs, and the temperature can be freely adjusted according to actual production needs. Control on the touch screen.
10. The equipment adopts imported PLC program control system, computer touch screen display, frequency conversion, and joint control; the wiring specifications of the electrical parts are reasonable, beautiful, elegant, and easy to operate.

Production speed	6-15 bags/min
Voltage/frequency/total power	380V+220V/50Hz/10.5kw
Size of wet wipes	length≤200mm; width≤120mm; height:≤55mm
Packing bag size	length≤430mm; width≤120mm; height:≤60mm
Film roll material	OPP; PET+PE; composite film
Film roll widt	≤450mm;
Folding machine: overall dimensions	6800mm × 1000mm × 2200mm
Track: Overall dimensions	3000mm ×350mm ×1100mm
Packing machine: Dimensions	2300mm×1000mm× 2300mm
Equipment weight	4500kg

Equipment performance and characteristics:
1. Range of use: 30-80 pieces/bag. Baby wipes, industrial wipes, kitchen wipes, household wipes, etc.
2. Working principle: (1 roll material loading → online slitting → automatic folding → automatic liquid addition →automatic cutting → automatic stacking → automatic counting) → wet wipes waiting. Material conveying → (into the packaging machine →roll film placement Roll → print production date → punch → label → bag making → back seal → pin horizontal seal)→ finished product output, the whole line is completed automatically.
3. The equipment is equipped with a set of 1250mm slitting machine, which can cut large rolls into the desired width of wet wipes, and can cut up to 6 wet wipes.
4. The equipment is equipped with 6 sets of folding devices, which can fold N, V, and C types; the equipment is equipped with servo fixed-length cutting and servo automatic stacking, which can be set freely on the touch screen.
5. Track: Realize the specific speed connection between the folding machine and the packaging machine.
6.450 type reciprocating packaging machine consists of: reciprocating packaging machine + coding machine + punch labeling machine;
7. Coding machine: It uses ink wheel to code, and the coding position is controlled by an independent servo motor, which can be selected on the touch screen.
8. Punching labeling machine: It is composed of a punching machine combined with a labeling machine, both of which are driven by an independent servo motor, which can be selected on the touch screen.
9. Reciprocating packaging machine: the width and height of the bag forming machine can be adjusted according to actual requirements; the horizontal sealing pin mechanism is composed of reciprocating pin holders; the back seal and horizontal seal are composed of independent PIDs, and the temperature can be freely adjusted according to actual production needs. Control on the touch screen.
10. The equipment adopts imported PLC program control system, computer touch screen display, frequency conversion, and joint control; the wiring specifications of the electrical parts are reasonable, beautiful, elegant, and easy to operate.
Specification

Production speed	6-15 bags/min
Voltage/frequency/total power	380V+220V/50Hz/10.5kw
Size of wet wipes	length≤200mm; width≤120mm; height:≤55mm
Packing bag size	length≤430mm; width≤120mm; height:≤60mm
Film roll material	OPP; PET+PE; composite film
Film roll widt	≤450mm;
Folding machine: overall dimensions	6800mm × 1000mm × 2200mm
Track: Overall dimensions	3000mm ×350mm ×1100mm
Packing machine: Dimensions	2300mm×1000mm× 2300mm
Equipment weight	4500kg
