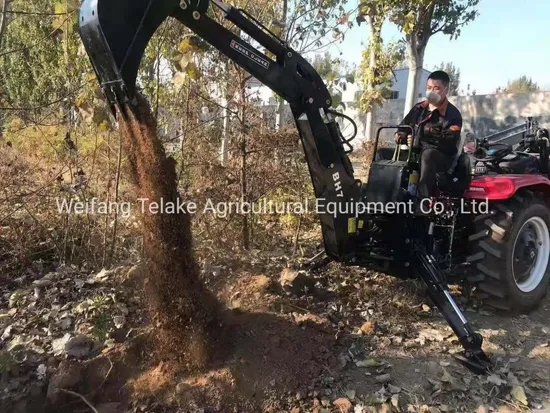

Agriculture Machinery Mini Four Wheel Garden Small Tractor with Excavator Bucket/Tiller

Agriculture Machinery Mini Four Wheel Garden Small Tractor with Excavator Bucket/Tiller

US$2,300.00-2,500.00 1 set (MOQ)

Basic Info.

Power Source
Diesel
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Gear Drive
Certification
ECE, EU, CE
Color
Green
Warranty
6-10 Years
Horsepower
60
Transmission Box
8f+2r
Rated Power
29.4kw
Rated Rev
2300r/Min
Front Wheel
6.00-16
Rear Wheel
9.50-24
Suspension Type
Three-Point Suspension
Pto Type
Post-Position, Half-Independent
Pto Rev
540/720r/Min
Pto Spline
35 Rectangle Spline with 6 Teeth
Transport Package
Hob Packaging
Trademark
TELAKE
Origin
China
HS Code
87019210
Production Capacity
20000 Unit/Year

Product Description


Product Description:
TK25-40 Hp series tractor is designed for multiple light works, such as farming, transportation etc.
Equipped with Chinese famous diesel engine, It has the advantage of high cost efficiency and fuel efficiency,
low maintenance cost and good working performance.
Using central console and mature structure, the tractor is easy to control and maintain.
8F+2R gearbox with easy operation and convenient maintenance; Optional single/double action clutches for different needs and operation;
Optional Herringbone tires, paddy tires or other type of tires to meet your needs of working conditions.
Hydraulic power steering( 4WD) makes it easy to control and reduce the labor strength of operator.
Main Technical Specifications:
Model TK254 TK304 TK354 TK404
Type 4×4 Wheeled Type 4×4 Wheeled Type 4×4 Wheeled Type 4×4
Overall Dimension
(mm)
L×W×H 3150x1450x2030 3150x1450x2030 3250x1500x2040 3350×1500×2130
Tread Front Wheel 960,1220(ususl) 960,1220(ususl) 960,1220(ususl) 1200 (usual)
Rear Wheel 960,1160(usual),1200,1300 960,1160(usual),1200,1300 960,1160,1200(usual),1300 1200 (usual)
Wheel Base 1715 1715 1820 1800
Min. Ground Base 360(the bottom of transfer case)
Min. Usage Mass(kg) 1400 1400 1600 1500
Engine Model Laidong KM385 Laidong KM3T30 Laidong 4L22BT Laidong 4L23BT
Type Vertical, water cooled and 4-stroke
Rated Power(kw) 18.4 22.1 25.7 29.4
Rated Rev.(r/min) 2300 2300 2350 2400
Fuel Diesel Oil
Tire Front & Rear Wheel 6.00-16
Optional Front
& Rear Wheel
9.50-24
Clutch Dry-friction,single stage or Dry-friction,Two Stage
Steering Hydraulic type
Transmission Box (4+1)×2 Composed
Suspension Type Post Positioned Tri-point Suspension Catalogue
PTO Type and Rev.(r/min) Post-position, half-independent,540/720
Spline Size φ35 Rectangle Spline with 6 teeth

Technology & Innovation:
WeiFang Telake has established a professional R & D team, realized the self-control ability of core components by integrating the industry's
advantageous resources, built a stable quality control system.
Invested tens millions to introduce intelligent mechanization total production line, automatic chassis production line, gearbox processing line and welding
robots, processing centers and other advanced production lines and equipment, to achieve an annual production capacity of 30,000 tractors.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////// Packaging & Delivery:
-Delivery time:20- 30 days.
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Certifications:
Common problems
(1) Are you a manufacturing factory or a trading company?
We are a factory with 20 years of professional production experience in the field of 25hp-240hp tractors, located in Weifang City, Shandong Province, China. Our factory has passed ISO9001, CCC, CE, SGS and BV certification. We also have a quality control department to purchase products for customers. This is why the price of our tractors is so reasonable.
(2) Can we print the logo or company name on your product or packaging?
of course. Your logo can be printed on your product by embossing, self-adhesive or silk-screen printing.
(3) About the price
The price is negotiable. It can be changed according to the options or packaging of the tractor.
(4) Regarding payment or other issues
We accept LC, TT, if you have other questions, please email me or chat with me directly.
Contact
Welcome to our factory
Adhere to the business tenet of "Integrity-based, Quality First", and wholeheartedly provide you with the best products and wholehearted service. We actively cooperate with research institutions and multinational companies to achieve continuous innovation. Weifang Telake Agricultural Equipment CO.,LTD welcomes domestic and foreign customers to visit and guide!
Weifang Telake Agricultural Equipment CO.,LTD
Adress: East of Haifeng Road,South of Cailin Road,Binhai Economic District,Weifang,Shandong,China
