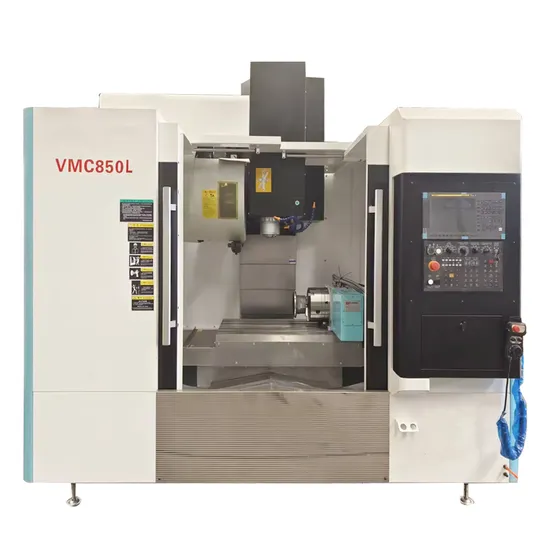

High Efficiency CNC Milling Machine Vmc 850 Console Double Column Horizontal Machining Center

High Efficiency CNC Milling Machine Vmc 850 Console Double Column Horizontal Machining Center

US$28,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
VMC 850
Type
Tool Milling Machine
Object
Tool
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Vertical Machining Center
Machine Type
CNC Milling Machine
CNC or Not
CNC Automatic
Spindles Clean The Air
Centralized Automatic Feed Lubrication System
Keyword
Vertical Machine Center, CNC Milling Machine
10.4 "Display
Tricolor Warning Light
Servo Transformer
Separate Handwheel
Foundation Gasket and Adjusting Bolt
RS232 Interface
Random Technical Document
Three Ball Type Linear Guide Rail
CNC Milling Machine
CNC Vertical Machining Center Vmc Machine
Production Capacity
30 Set/Month

Product Description

High Efficiency Cnc Milling Machine VMC 850 Console Double Column Horizontal Machining Center # Robust construction for efficient machining.
# HIWIN linear rail guide system for rapid feeds upto 8000mm/min.
# NSK high-precision bearing preloaded for ballscrews on all 3 axis.
# Armless(Umbrella)Type ATC(16-20 tools) Or Mechanical hand 24-station tool magazine as Optional.
#The rotary table(4thaxis,4+5th axis)as optional.
# Integrated coolant system.
# Chip conveyor and purge system for optimum chipremoval.
# Easy accessibility of work table foreasy setup and tooling.
# Enclosed work space ensures safe and contamination-free work.
# Different Operating system as optional: Siemens, Fanuc, Mitsubishi, GSK, Syntec. KN
Technical parameter
Model VMC650B VMC850B VMC1055B VMC1370B VMC1580B VMC1890B
Travel(XAxis)(mm) 650 850 1000 1300 1500 1800
Travel(YAxis)(mm) 500 550 550 700 800 900
Travel (ZAxis)(mm) 500 550 560 610 700 680(800)
Distance: working table
to spindle nose(mm)
150-650 120-740 150-710 140-750 140-840 160-840
Distance:spindle to
Vertical Guideway(mm)
555 575 610 765 860 1060
Working table size(mm) 900X420 1000X550 1200X550 1400X710 1700X800 2000X900
Max.load on table(kg) 500 600 800 1000 1500 1600
T shape groove 3-18X100 5-18X100 5-18X100 5-22X120 5-22X135 5-22X160
Taper hole of spindle BT40- φ120 BT40- φ150 BT40- φ150 BT40- φ150
/BT50- φ155
BT50-- φ155 BT50-- φ155
Spindle speed (r/min) 8000 8000 8000 8000 6000 6000
Spindle power (kw) 5.5/7.5 7.5/11 11/15 11/15 15/18.5 15/18.5
Power(XYZ)(kw) 1.5 2 3 3.5 4.5 4.5
Rapid moving speed
X/Y/Z(m/min)
24/24/18 24/24/18 24/24/18 24/24/18 24/24/18 24/24/18
Feeding speed(mm/min) 20-5000 20-5000 20-5000 20-5000 20-5000 20-5000
XY ZPositioning accuracy
(mm)
0.012 0.012 0.012 0.012 0.012 0.012
XY ZRepositioning accuracy
(mm)
0.006 0.006 0.006 0.006 0.006 0.006
Dimension(mm) 2400X2050
X2030
2700X2150
X2600
3200X2500
X3000
3700X2600
X2515
4310X2810
X2780
4800X3460
X4000
Weight(Kg) 4000 5000 6500 8500 12000 17000
