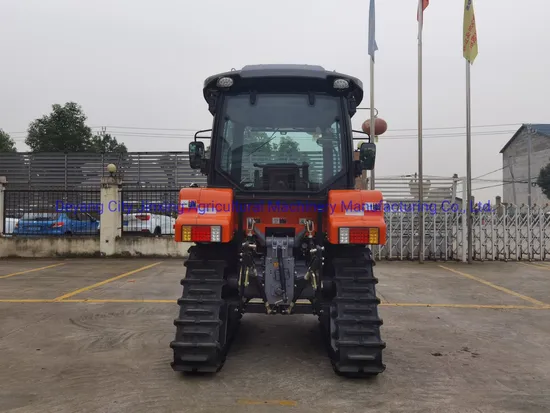

Xj1002 K-Bos Crawler Tractor and Triangular Crawler Tractor, Paddy Mud Agitator
| US$15,000.00-18,500.00 | 3 Pieces (MOQ) |
Basic Info.
Model NO.
XJ1002
Farming Policy
Paddy Field Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
CE, CNAS
Color
Red&Yellow
Warranty
1 Year
Gross Weight
3150
Container
40hq - 3units
Transport Package
Naked
Specification
CE, SGS, ISO9001
Trademark
K-BOS
Origin
Deyang Sichuan
HS Code
8701300090
Production Capacity
3000PCS/Year
Product Description
Product DescriptionThis tractor adopts triangular crawler walking, steering wheel operating, diffrential controlling of 360° spin in place, hydraulic steering lift , operating smartly and comfortably;
High chassis ground clearance 440mm, wide guage 1300mm, very good trafficability in mud field;
Commonly used three-point Linkage, multi-functional match different farming Implements to finish rotary tilling, ridging, furrowing works etc;
The advantages are: low ground pressure, strong sag resistances protect soil effectively without damage to plow pan, high efficiency.
Product Parameters
| ITEM | PARAMETER | |
| Product | Crawler Tractor XJ1002 | |
| Overall Dimension Length×Width×Heights ( mm ): | 4100 × 1910× 1900 | |
| Weight (kg) | 3150 | |
| Structure | Chassis Based | |
| Engine | Engine Model | YTN3155-44 |
| Rated Power ( kw/hp ) | 73.5KW/100HP | |
| Engine Type | Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel. | |
| Rated Rotation Speed (r/min) | 2300 | |
| Starting Method | Electrical Start | |
| Driving System | Drive Wheel | 2 Wheel Drived |
| Transmission | 4×(1+1)×2 shifts | |
| Steering Operation Control | Wheel Steering Mechanical | |
| Type of Brake | Wet Disc Brake | |
| Traveling System | Rubber Track(mm): | 400x90x58 |
| Gauge (mm) | 1300 | |
| Theoretical Operating Speed ( km/h ) | 0~16.47 | |
| Minimum Ground Clearance (mm) | 550 | |
| Working Implement | Hydraulic Hitch Type | Semi-partition Hydraulic Hitch |
| Rear Mounted Implements Type | Three-point Linkage | |
| PTO Rotating Speed (r/min) | 720/1000 | |
Detailed Photos
