Automatic BOPS PP Pet Thermoforming Making Machine

Product Description

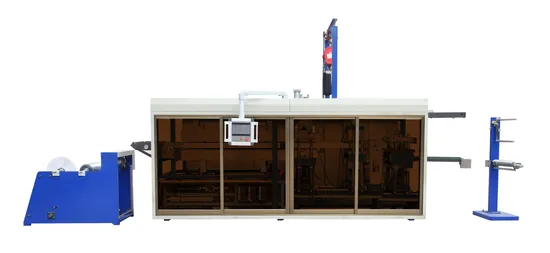

MODEL-500L MULTISTATION THERMOFORMING MACHINE
High Speed Automatic BOPS PP PET Thermoforming Making Machine
technical parameter:

Model	MODEL-500L
Suitable Sheet	PP, PLA, PET,BOPS,PVC, HIPS, Foam PS,
Largest Forming Area	500mm*400mm
Maximum Width	520mm
Maximum Depth	90mm
Power	52Kw
Air Pressure	0.6-0.8Mpa
Production rate	10-30die/min
Depth of Sheet Material	0.10mm-1.20mm
Weight	5000Kgs
Overall Dimension	4900mm*2000mm*2200mm(L*W*H)

INTRODUCTION:
Model-500L thermoforming machine is a new type of machine developed by our company according to the market and customer's demand. The machine is a kind of multi-station automatic machine, which has the synchronous complete forming, punching, and cutting, so easy to get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved. It can be applied to metal, food, medicine, cosmetics and other PS/PET/PVC/PP plastic products etc.
main feather:
Compact structure, stable operation, simple operation, convenient maintenance;
Servo adjustment, interface touching screen;
Adjustable moving-trip, mould replacement is simple;
INSTALLENT: the all cost should be in buyer's side, as visa, two-way tickets, meals and accommodation, etc.
the buyer should pay 100USD/Day for salary.
shipment:
