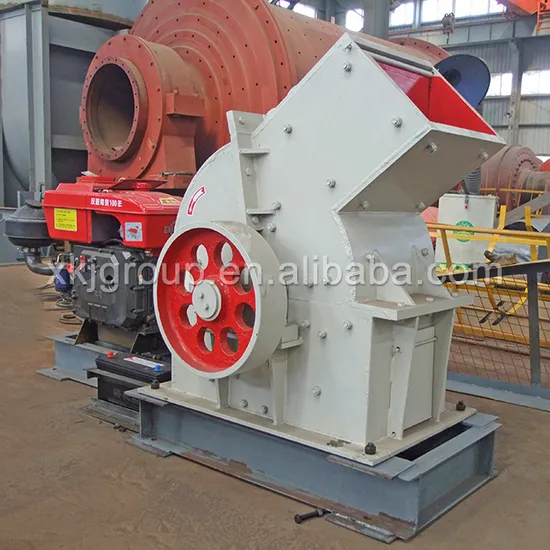

PC 800*600 Rock Diesel Hammer Mill Crushers Spare Parts Welding Hammer Crusher with Rotors

Product Description

Product Description
Hammer crusher is widely used in processing plants, refractory plants, cement, glass and other industrial sectors with medium hardness materials are finely ground. Can be used for dry or wet crushing, the material should be seeped before crushing , seepage is not allowed for dry crushing.
Working principle

The motor drives the rotor rotates at high speed in the crushing cavity. Material from the upper opening to feed into the machine, under hitting, impacting, shearing, abrasive and high-speed movement of the hammer and can be smashed. the crushed material smaller than the mesh size of the sieve which in the lower part of the rotor discharged , the larger one retained on the sieve and grinding continued to be hit by the hammer, and finally output through the sieve. Parameter

Model	Rotor diameter(mm)	Rotor working length(mm0	Rotor RPM(r/min)	Feeding size(mm)	Discharging size(mm)	Capacity(t/h)	Power	Dimension(LxWxH)	Weight(t)
PC400x300	400	300	1200	≤80	≤10	5-8	11	812*982*785	0.7
PC600x400	600	400	1000	≤100	≤15	10-15	18.5	1200*1114*1114	1.5
PC800x600	800	600	980	≤120	≤15	20-25	55	2620*1864*1340	3.7
PC1000x800	1000	800	980	≤200	≤45	34-54	110	3574*2250*1515	6.9
PC1000x1000	1000	1000	1000	≤200	≤15	40-60	132	3514*2210*1515	8.5
PC1200x1000	1250	1000	745	≤200	≤25	75-150	160	2550*2400*2630	12.5
PC1200x1200	1250	1250	745	≤200	≤20	80-160	185	2550*2600*2630	14.3
PC1400x1400	1400	1400	750	≤250	≤20	120-170	280	2790*2800*2310	17.2
PC1600x1600	1600	1600	500	≤350	≤20	220-290	500	6256*362 0*2700	32.4

Spare Parts

Crusher wear parts play a critical role in the performance of crushing equipment. Understanding the different types of wear parts and their functions, as well as the factors to consider when selecting the right wear parts, is crucial for optimizing equipment performance and reducing maintenance costs. Investing in high-quality wear parts provides many benefits, including improved equipment performance, reduced maintenance costs, and increased safety. Packaging & Shipping

Detail: 1. small parts are wooden box package. 2. main engine nude packing, container, or upon customers requirement.
Delivery Detail: within 20 days
Ports: Qingdao, Shanghai, Tianjin and other ports.

After Sales Service
Our Advantages
1. The enhancement rotor is designed with finite element analysis technology.
2. High crushing ratio. The crushing ratio ranges from 10 to 25 or even higher to 50.
3. The AMC alloy hammerhead enjoys a service life increased by 50~150%.
4. The theory of stone hitting effectively reduces the wear load of hammerhead and grid plate.
5. The high strength artillery steel spindle is designed with vacuum duplex which increases the strength by 3-4 times.
FAQ
1. How long is the delivery time of your machine?
The delivery time is within 20-30 working days. But if the project is very large and clients have some special requirement about the equipment, the delivery time will be extened.

2.What are the payment terms?
The payment terms are L/C, T/T, D/A, D/P and other.

3.What is the minimum order quantity of your machine?
1 set. Our service will be to satisfy the needs of every client.

4.How long is the warranty period about machine?
Our machine warranty period is 1 year. Wearing parts and problem coursed by worker's wrong operation are not included.

5.What is the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide installation service, workers training service, etc.

6.Can you provide wearing parts?
We have four casting factories that specialize in producing wearing parts for our clients. If your machine are not manufactured by our company, please provide us the wearing parts drawing.

7.Can you provide me a solution and quotation?
Of course. Please give us your details about project, raw material, the capacity, max feeding size, the output size, the usage of final products, etc.
Henan Xingyang Mining Machinery Manufacturer is professional manufacturer for stone crushing machine and mining processing machine from 1956. Our machines are widely used in mining, smelting, building materials, road construction, water conservancy and cement industry. Rich experience make us know well what you need. We can help you to set up full set of mineral processing equipment from 30TPD-3000TPD.
Meanwhile, We have four casting factories that specialize in producing wearing parts for our clients. If your machine are not manufactured by our company, please provide us the wearing parts drawing.
