CNC Pipe Threading Lathe CNC Oil Country Lathe Qk1327 Qk1332

Product Description

Product Description

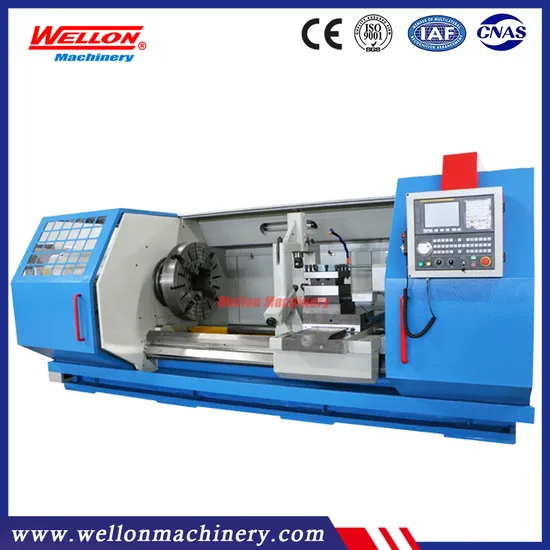

CNC Pipe Threading Lathe CNC Oil Country lathe QK1327 QK1332
Detailed Photos
Product Parameters

FANUC 0i TD controller, Manual 4-jaw tube compound chuck, 4-station vertical electric toolpost, Electric tailstock, Centralized
automatic lubrication system, Cooling system, Working light, Electrical cabinet with air conditioning, RS232 interface, Movable electronic handwheel (MPG), Tri-color alarming light, General tools, Operation manuals (English edition).
Technical parameter:

Model	QK1313	QK1319	QK1322	QK1327	QK1332	QK1343	QK1350
Bed width	550mm	550mm	550mm	750mm	750mm	750mm	755mm
Turning diameter over bed (max.)	630 mm	630 mm	630mm	1000mm	1000mm	1000mm	1200mm
Max. diameter of pipe (manual chuck)	126 mm	190 mm	219mm	270mm	320mm	426mm	520mm
Turning length (Max.)	1500 mm	1500 mm	1500mm	1500mm	1500mm	1500mm	1700mm
Spindle bore	130 mm	200 mm	225mm	280mm	330mm	440mm	520mm
Spindle speed steps	18 steps	12 steps	12 steps	12 steps	12 steps	9 steps	9steps
Range of spindle speed	12~640 r/min	24~300 r/min	24~300 r/min	16~380 r/min	16~380 r/min	5~200 r/min	6~205 r/min
Tool post	Vertical 4-position	Vertical 4-position	Vertical 4-position	Vertical 4-position	Vertical 4-position	Vertical 4-position	Vertical 4-position
Indexing time(s)	3	3	3	2.4	2.4	2.4	2.4
Main motor (kw)	7.5kw	7.5kw	7.5kw	22kw	22kw	22kw	37kw

Company information

Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
