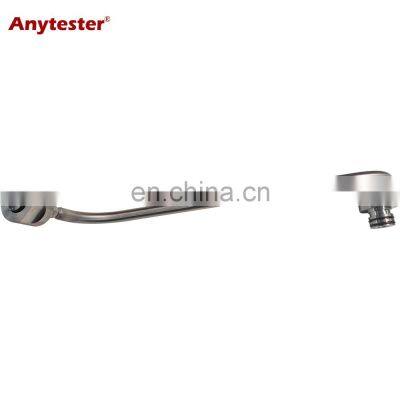

Lab Scale Wet Spinning Machine Accessories Gooseneck

Product Description

Product Description
Product Description
AT235 Bench-top Wet Spinning Machine is special design for researching new material in the field of textile, macromolecule and other material. It consists of mixing tank, dosing pump, filter, spinneret, coagulating bath, drawing roller, heating bath, drawing roller, setting bath, drawing roller and winding.
Specification

Model			AT235
Mixing tank			1L or customized, 316L stainless steel
Sample volume			200~ 600ml or customized
Vacuum pump			0.18kW
Dosing pump flow rate			0.66CC/rev
Dosing pump power			180W
Dosing pump reducer			1:60
Spinneret			1
Spinneret plate			100 holes, hole dia.: 0.07mm Material: tantalum
The Whole line length			5000mm
Power supply			200V, 50Hz
Coagulating bath
Size			1000*160*160mm
Heating power			0.6kW
Material			316L stainless steel
Drawing roller
Material			Nylon or 316L stainless steel
Size			Ø50×80mm
Reducer			1:10
Motor power			25w
Roller speed			2~40m/min adjustable
Heating bath
Type			non-contact
Length			400mm
Heating power			250W
Temp. range			20~150℃
Sensor			PT100
Setting bath
Type			non-contact
Length			800mm
Heating power			250W
Temp. range			20~150℃
Sensor			PT100
Winder
Speed			2-40m/min
Size			Ø50×80mm
Transverse displacement			55mm

Futures
★ 316l Stainless steel frame, durable and nice
★ Mini size, save space
★ It can simulate the whole process
★ Thermal system for mixing tank is selectable
★ Heating bath can adopt air heating or water heating, it's selectable.
★ The whole line adopt quick joint connecting, it's easy to assemble.
