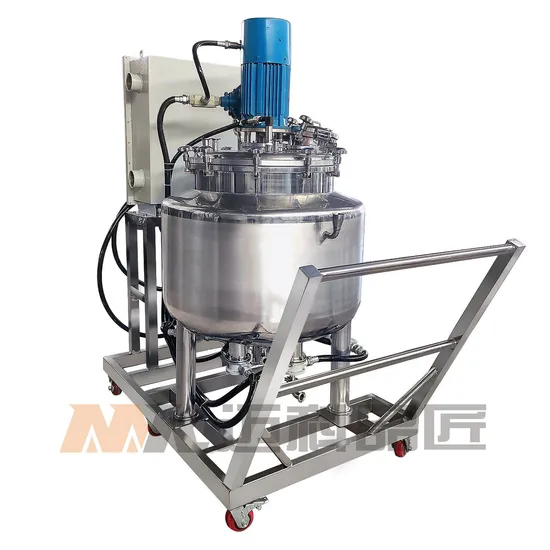

Mobile 200L SUS 316L Chemical Fuel Stainless Steel Mixing Tank
Basic Info.
Model NO.
MK-JBG-2
Application
Liquid, Essence
Application Area
Essence
Certification
ISO
Condition
New
Main Material
Stainless Steel
Mixing Drum Shape
Customer Customization
Stirring Type
Gear Type High-Speed Turntable
Warranty
1 year
Working
High Speed Mixer
Motor Power
4 Kw
Motor Speed
2900r/Min
Cylinder Diameter
600mm
Sealing Form
Mechanical Seal
Texture of Material
316L Stainless Steel
Thermal Insulation Material
Aluminum Silicate
Operation Method
Continuous Operation Mode
Cylinder Thickness
3mm
Stirring Paddle Type
High Speed Dispersion Disc
Heating Mode
Electric Heating
Control Mode
Fully Automatic
Structure Type
Vertical
Mixing Paddle Type
Dispersed Disk
Mixer Type
Agitator
Layout Type
Verticle
Transport Package
Wooden Box
Specification
200L
Trademark
Maike
Origin
China
Product Description
Product OverviewThis is a dispersion mixing tank, which uses a high speed dispersion disc as the agitator to quickly crush, disperse and mix materials with different viscosities in a short time. It is one of the more advanced dispersion equipment in industrial production. The small dispersion mixing tank is mainly used for dispersion, which plays a role of partial mixing under certain circumstances, and prepares for the next process. At the same time, it can also pre disperse the materials, and the pre dispersion effect is good, which is conducive to improving the work efficiency and ensuring the quality of the processed materials.
Product structure
Mixing tank is composed of mixing tank body, mixing tank cover, mixer, support, transmission device, shaft seal device, etc. it can also beequipped withheating device or cooling device according to the process requirements.
Technical parameter
| Type | Volume(L) | Cylinder Size(mm) | Motor Power(KW) | Speed(rpm) | Material |
| MK-JBG-0.5 | 50 | 300 | 0.75 | 0-2800 | SUS304 / SUS316L |
| MK-JBG-1 | 100 | 500 | 0.75 | 0-2800 | SUS304 / SUS316L |
| MK-JBG-2 | 200 | 600 | 1.1 | 0-2800 | SUS304 / SUS316L |
| MK-JBG-3 | 300 | 700 | 1.5 | 0-2800 | SUS304 / SUS316L |
| MK-JBG-5 | 500 | 900 | 2.2 | 0-2800 | SUS304 / SUS316L |
| MK-JBG-8 | 800 | 1000 | 3 | 0-2800 | SUS304 / SUS316L |
| MK-JBG-10 | 1000 | 1100 | 4 | 0-1400 | SUS304 / SUS316L |
| MK-JBG-20 | 2000 | 1300 | 5.5 | 0-1400 | SUS304 / SUS316L |
| MK-JBG-30 | 3000 | 1500 | 7.5 | 0-1400 | SUS304 / SUS316L |
| MK-JBG-40 | 4000 | 1700 | 7.5 | 0-1400 | SUS304 / SUS316L |
| MK-JBG-50 | 5000 | 1900 | 11 | 0-1400 | SUS304 / SUS316L |
| MK-JBG-100 | 10000 | 2000 | 15 | 0-1400 | SUS304 / SUS316L |
According to the material characteristics and the user's process requirements, our company will recommend the proper type of agitator and mixing speed. The agitators suitable for low viscosity and medium viscosity fluids include propelling agitators, turbine agitators, inclined blade agitators, Brumakin agitators, plate and frame agitators, three blade backward curved agitators, MIG agitators, etc. The agitators suitable for high viscosity and ultra-high viscosity fluids include anchor type agitator, frame type agitator, spiral belt type agitator and screw type agitator. The combined agitator can also be made according to the technological requirements of users.
