Precision Metal Professional Bench Lathe Machine
| US$2,790.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CQ6236
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Swing Over Bed
360mm
Swing Over Cross Slide
206mm
Swing in Gap Diameter
490mm
Length in Gap
Length in Gap
Length Between Centers
1000mm
Center Height
Center Height
Width of Bed
218mm
Transport Package
Package
Specification
CE
Trademark
G&G
Origin
China Jiangsu
HS Code
845899000
Production Capacity
300/Per Month
Product Description
Specifications

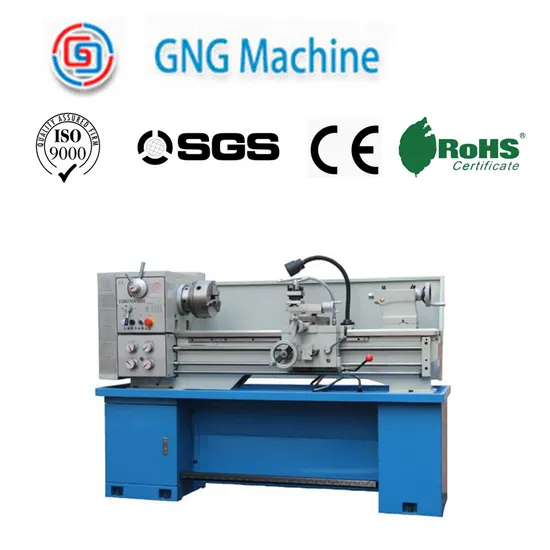

Precison metal lathe machine CQ6236
Swing over bed:360mm
Length between centers:1000mm
Spindle bore:52mm
Standard accessories:
1.4 jaw chuck
2.steady rest
3.follow rest
4.face plate
5.work light
6.coolant system
7.foot brake
Model | CQ6236x1000mm |
| Swing over bed | 360mm |
| Swing over cross slide | 206mm |
| Swing in gap diameter | 490mm |
| Length in gap | 130mm |
| Length between centers | 1000mm |
| Center height | 180mm |
| Width of bed | 218mm |
| Taper in nose | MT6 |
| Spindle nose | D1-5 |
| Spindle bore | 38mm/52mm(optional) |
| Speeds range | 65-1810mm |
| Compound rest travel | 76mm |
| Cross slide travel | 200mm |
| Leadscrew thread | 3mm pitch |
| Leadscrew diameter | 24mm |
| Cutting tool max section | 16x16 mm |
| Longitudinal feeds metric | 0.053-1.291mm/rev(40Nos.) |
| Longitudinal feeds imperial | 0.002-0.051"/rev(40Nos.) |
| Cross feeds metric | 0.011-0.276mm/rev(40Nos.) |
| Cross feeds imperial | 0.001-0.011"/rev(40Nos.) |
| Thread metric pitches | 0.4-7mm |
| Thread imperial pitches | 60-4 T.P.I |
| Thread diametral pitches | 44-16.DP |
| Thread module pitches | 0.4-3mm |
| Quill diameter | 32mm |
| Quill travel | 100mm |
| Quill taper | MT3 |
| Main motor power | 1.5KW(50HZ) |
| Coolant pump power | 40W(50HZ) |
| Packing size(cm) | |
| NW/GW(kg) | 640kg |
