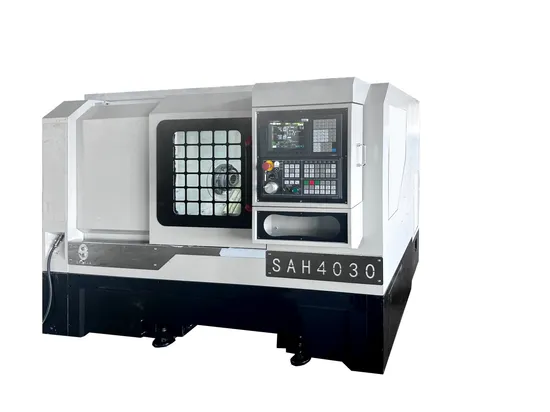

High Precision Metal Automatic Hydraulic Power Slant Bed Lathe CNC Machine

Product Description

Structure design reasonable 45 degrees integral casting molding CNC Lathe Machine
Product Description
Suitable for: general machining manufacturing industry, parts batch, small partsproduction.
Feature
servo spindle developed byourfactory, which has the features of high speed, high torgue at low speedand stable performance, etc. The X-direction stroke is very large, which can be set up to install more row of knives, power head or turret torealise the compound turning and millingmachining.
Product Parameters

Bed structure	Bed tilt angle	45°
	Guideway form	X/Z wire rails
	Guideway width mm	286
	Guideway specification	Hgh30ca
Machining capacity	Max.rotary diameter of lathe body /mm	400
	Maximum turning diameter of lathe body /mm	400
	Max.tuming diameter on the lathe support board /mm	120
	Max.workpiece length mm	350
	Max.bar through-hole diameter /mm	54
Stroke	x-axis mm	330
	Z-axis mm	380
Feed	X-axis fast v m/min	12
	Z-axis fast v m/min	12
	X-axis sm torq N.m	6
	Z-axis sm torq N.m	6
Spindle	Spindle End Form	a2-5
	Spindle through hole diameter /mm	56
	Spindle hole taper	Morse 6
	spindle speed range r/min	1000-4000
	Main Motor Power Kw/rpm	7.5/1500
	Chuck Form (Standard)	Hydraulic collet
	Chuck Form (Optional)	Hydraulic chuck
	Chuck Size Inch	6"
Tool holder	Turret Type	Chip displacer
	Turret centre height mm
	Tool size	20x20
Tailstock	Lathe rear seat form
	Lathe tailstock sleeve stroke mm
	Lathe tailstock sleeve taper
Power	Total capacity Kw	10
	V V	380
	I A	23
Gauge	WT kg	1500
	SIZE LxWxH(mm)	2140x1370x1550
other	Configuration Buy up	Servo turret,chip conveyor
	Type of chip conveyor Buy up	Chain plate typeyor

Detailed Photos

hot selling product

Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.
