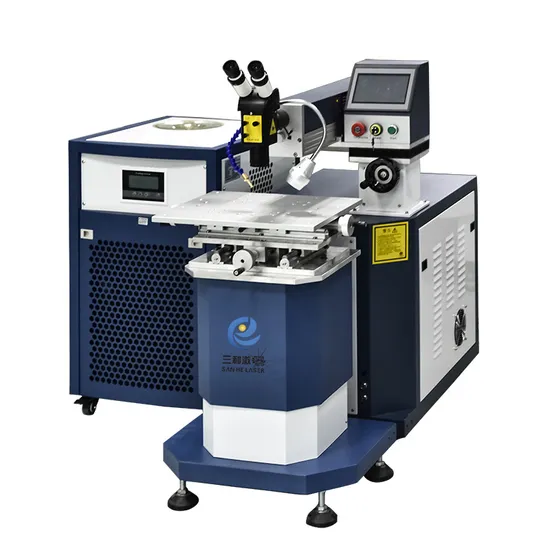

Laser Welding Machine Mold Repairing Spot Welding Laser Soldering
| US$4,500.00-7,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
3HE-MJ400W
Control
Automatic
Power Density
Deep Fusion Welding
Laser Classification
YAG Laser
Type
Laser Mold Welding Machine
Machine Model
200W/300W
Max Laser Power
200W/300W
Laser Wavelength
1064nm
Spot Size
0.2-3.0mm
Welding Depth
<(=)3mm
Machine Power
10kw
Control System
Microcontrollers
Power Supply
380V(+)10%
Host System Size
560*800*400mm
Working Table Loading
150kg
Transport Package
Carton
Specification
CE
Trademark
SanHe
Origin
Dongguan Guangdong
HS Code
8515809010
Production Capacity
200 Set/Month
Product Description
Advantage:
★Twelve-direction welding angle can be adjusted. Operating lever controls the electric adjustment speed of the
laser welding head.
It is suitable for repair welding of any angle and position.
★United Kingdom imports ceramic condenser cavity, corrosion resistance, high temperature resistance and
Chamber life (8-10),
Xenon lamp life of more than 8 million times.
★Uses the world's most advanced automated blackout systems, eliminating time on eye irritation.
★Use 10X microscope, cross hair indicates, and uses high-speed liquid crystal light valve light automatically.
Pace with laser output of the shielding gas, ensure that solder joint appearance, oxidation of solder will not
change color.
★Use 7-inch LED screen, able to switch in Chinese and English freely, pace with the international market.
Technical parameters:
| Model | 3HE-MJ200W | 3HE-MJ300W | 3HE-400W |
| Max laser power | 200W | 300W | 400W |
| Laser type | YAG | YAG | YAG |
| Laser wavelength | 1064nm | 1064nm | 1064nm |
| Spot size | 0.2-3.0mm | 0.2-3.0mm | 0.2-3.0mm |
| Pulse width | 0.1ms-25ms | 0.1-25ms | 0.1-25ms |
| Pulse frequency | ≤100Hz | ≤100Hz | ≤100Hz |
| Machine power | 6KW | 10KW | 12KW |
| Position | CCD and red light | CCD and red light | CCD and red light |
| Welding depth | ≤2mm | ≤3mm | ≤4mm |
| Host system size | 560×800×400mm | 560×800×400mm | 560×800×400mm |
| Power supply | 220V±10%/380±10% | ||
| Working table loading | 150KG | ||
Laser welding machine video link:
| Mold laser spot welding teapot sanhe laser machine | https://sanhe-laser.en.made-in-china.com/watch?v=juPPxVQK8UE |
| Crane large mold repair laser welding machine | https://sanhe-laser.en.made-in-china.comwatch?v=-VKR6pHB0AQ |
| Repair mold laser welding machine | https://sanhe-laser.en.made-in-china.com |
International certification
