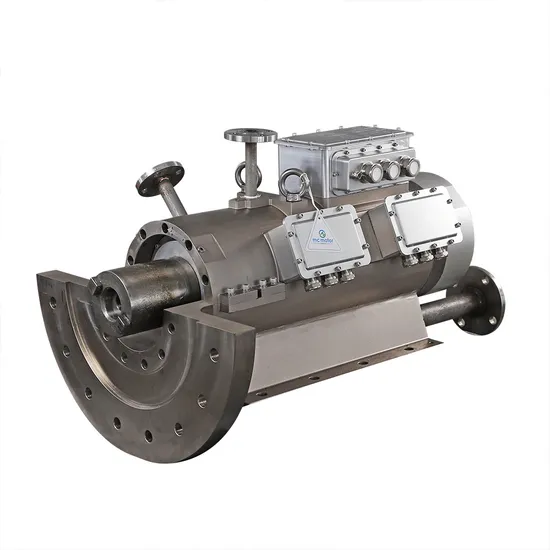

75kw to 220kw 24000rpm High Speed Pmsm Synchronous Electric Motor Brushless Motor

Product Description

50kw 75kw 100kw 200kw 350kw 15000rpm 20000rpm 24000rpm Permanent Magnet Motor for High Speed Compressor/Fan/Pump Oil Cooling
The Range of Heavy High Speed Motor: Product Description
Product Feature
1.Suitable for the 10000rpm to 24000rpm Rated Speed
2.Reserve a large margin of security
3.High power & High torque
4.High efficiency
5.Small size
6.Low noise low vibration
7.The autonomous patented cooling structure
Specifications
Voltage: 380V AC-540V DC
Rated Power: 50kw-350kw
Rated Speed:6000rpm-24000rpm
Isolation: H
Cooling Method: Oil Cooling
Ingress Protection:IP65(IP54 option)
Duty type: S1
Pole:4
Installation: B3,B5,B35
Max Net Weight: 70-350kg
Application:
high speed compressor, fan, pump,blower
Main Products:
Customer Case
Company Profile

About MC MOTOR

MC Motor Technology Co., Ltd is a leading high-tech enterprises which focuses on the design, research and manufacture of the new generation high speed permanent magnet motors, which are widely used in industrial, agriculture, mining, building service, water-treatment, automotive and other new emerging industries. In the past few years, MC Motor leads a series of technological innovations, and made remarkable achievements, includes: 1.Obtains worldwide reserved intellectual property rights about approximately one hundred core technologies, most of which have been successfully applied to our motors 2.Achieved more than 50 new designed PM high speed motors from 8KW to 200KW, 5000rpm to 24000rpm, which have much higher efficiency, power density, reliability and smaller size & lighter weight than other similar PM motor. 3.Forms mature production lines and professional & excellent teams of management, R&D, marketing and sales, obtains very good reputation from our clients world-widely. MC MOTOR has international standard QC management system to make sure every production process strictly complies with ISO9001-2015, IATF16949, ISO14001, ISO45001
Detailed Photos
Type 1:
Type 2:
Type 3:
Our Advantages
Certifications Packaging & Shipping
More Motors Other motors you will be interested in

Motor type	Voltage	Rated power	Rated torque (N.m)	Rated speed	Efficiency	Insulation	Ingress protection	Pole Number	PIC	Weight	Cooling Method	Position Signal	Duty Type	Installation Method
	(V AC)	(kW)		(rpm)	(%)					(kg)
SPRM( General)	380	5.5-110	10-420	10000-80000	95.00%	H/F	IP54/IP67	8		19-112	Water	Resolver	S1-S9	B35
SPRM( General)	380	4-37	35-463	15000-24000	95.00%	H/F	IP54/IP67	8		14-100	Air	N/A	S1-S9	B35
SPRM( General)	380	37-350	35-463	12000-24000	95.00%	H/F	IP54/IP67	8		14-25	Oil	N/A	S1-S9	B35
SRPM112H4F7.5C	380	7.5	3.4	21000	95	H/F	IP54	4		12	Air	N/A	S1-S9	B35
SRPM112H4F7.5C	380	7.5	3	24000	95	H/F	IP54	4		12	Air	N/A	S1-S9	B35
SRPM112H4F15F	380	15	6	24000	95	H/F	IP54	4		20	Air	N/A	S1-S9	B35
SRPM112H4F18.5	380	18.5	8.41	21000	95	H/F	IP54	4		25	Air	N/A	S1-S9	B35
SRPM180L8F18.5	380	18.5	33.3	5300	95	H/F	IP54	8		25	Air	N/A	S1-S9	B35
SRPM130H4F22	380	22	10	21000	95	H/F	IP54	4		33	Air	N/A	S1-S9	B35
SRPM130H4F37	380	37	19.63	18000	95	H/F	IP54	4		47	Air	N/A	S1-S9	B35
SRPM168H2F75C	380	75	21.07	34000	95	H/F	IP54	2		50	Air	N/A	S1-S9	B35
SRPM112H4F15	380	15	5.96	24000	96.5	H/F	IP54	4		12	Air/Water	N/A	S1-S9	B35
SRPM112H4W5.5	380	10	2.5	21000	94	H/F	IP67	4		14	Water	N/A	S1-S9	B35
SRPM112H4W10	380	10	8	12000	94	H/F	IP67	4		20	Water	N/A	S1-S9	B35
SRPM112H4W20	380	20	8	24000	96.5	H/F	IP54	4		25	Water	N/A	S1-S9	B35
SRPM112H4W22B	380	22	8.75	24000	96.5	H/F	IP54	4		25	Water	N/A	S1-S9	B35
SRPM112H4W25	380	25	15.9	15000	96.5	H/F	IP54	4		28	Water	N/A	S1-S9	B35
SRPM112H4W30	380	30	17.9	16000	96.5	H/F	IP54	4		32	Water	N/A	S1-S9	B35
SRPM210M4W55B	380	55	52.5	10000	95.4	H/F	IP54	4		55	Water	N/A	S1-S9	B35
SRPM210H4W60	380	60	45.8	12500	96.5	H/F	IP54	4		80	Water	N/A	S1-S9	B35
SRPM210M4W75C	380	75	71.6	10000	96.5	H/F	IP54	4		95	Water	N/A	S1-S9	B35,V1
SRPM130H4W20	380	20	3.3	60000	95.00%	H/F	IP54/IP67	4		45	Water	N/A	S1-S9	B35
SRPM95H2W18	380	18	0.667	75000	95.00%	H/F	IP54/IP67	2		45	Water	N/A	S1-S9	B35
SRPM95H2W5.5	380	5.5	2.29	80000	95.00%	H/F	IP54/IP67	2		25	Water	N/A	S1-S9	B35
SRPM180M8O30	380	30	23.8	12000	96.5	H/F	IP67	8		12	Water/Oil	N/A	S1-S9	B35
SRPM165H4XO37	380	37	17.7	20000	96.50%	H/F	IP54/IP67	4		100	Oil	N/A	S1-S9	B35
SRPM214H4O50	380	50	19.9	24000	95.00%	H/F	IP54/IP67	4		100	Oil	N/A	S1-S9	B35
SRPM214H4O75	380	75	29.8	24000	95.00%	H/F	IP54/IP67	4		120	Oil	N/A	S1-S9	B35
SRPM214H4O100	380	100	39.8	24000	95.00%	H/F	IP54/IP67	4		150	Oil	N/A	S1-S9	B35
SRPM214H4O124	380	124	66	18000	95.00%	H/F	IP54/IP67	4		250	Oil	N/A	S1-S9	B35
SRPM160H4XO90	380	90	43	20000	96.5	H/F	IP67	4		48	Oil	N/A	S1-S9	B35
SRPM205H4XO110	380	110	52.5	20000	96.5	H/F	IP67	4		76	Oil	N/A	S1-S9	B35
SRPM205H4XO160	380	160	76.4	20000	96.5	H/F	IP67	4		86	Oil	N/A	S1-S9	B35
SRPM205H4XO200	380	200	95.5	15500	95.5	H/F	IP67	4		350	Oil	N/A	S1-S9	B35
SRPM205H4O220	380	200	131.1	16000	95.5	H/F	IP67	4		310	Oil	N/A	S1-S9	B35
SRPM290H4O350	380	350	167.1	20000	95.5	H/F	IP67	4		530	Oil	N/A	S1-S9	B35

Motor type	Voltage (V AC)	Rated power (kW)	Rated torque (N.m)	Rated speed (rpm)	Efficiency (%)	Duty type	Insulation	Ingress protection	Pole Number	Weight (kg)	Cooling Method	position signal
SRPM160H4XO15	380	15	5.96	24000	96.5	S1	H/F	IP67	4	12	Oil	Resolver
SRPM160H4XO75	380	75	35.8	20000	96.5	S1	H/F	IP67	4	44	Oil	Resolver
SRPM160H4XO90	380	90	43	20000	96.5	S1	H/F	IP67	4	48	Oil	Resolver
SRPM205H4XO110	380	110	52.5	20000	96.5	S1	H/F	IP67	4	76	Oil	Resolver
SRPM205H4XO160	380	160	76.4	20000	96.5	S1	H/F	IP67	4	86	Oil	Resolver
SRPM205H4XO200	380	200	95.5	20000	96.5	S1	H/F	IP67	4	95	Oil	Resolver

FAQ
1. Can performanent magnet synchronous motor be used as generator?
Yes. Permanent magnet synchronous motor can work as a generator because of its special working theory. If it runs CW as a motor, then runs CCW as a generator. But please kindly note, if when you want to work it as a generator, you need to change a suitable motor controller with AFE function
2. Why can not directly use three phase ac supply voltage to start permanent magnet synchronous motor?
Becuase rotor is with big innertia, and magetic files spins so fast that static rotor has no way to spin with magetic filed.

3. Any special technical request on this motor's VFD driver? And Do you have such driver?
Permanent magnet synchronous motor's driver should be vector control VFD with special inner software, such as Siemens 6SE70 series, Yakawa CR5 series, ABB ACS800 series, Mitsubishi A740 series, B&R P84 and P74 series, etc.. Yes, our MH300 series VFD matches with this motor.

4. Is there any protective measures to defend permanent magnet rotor from failure?
Yes, each permanent magnet rotor passes corrossion resistance, consistency, high temperature demagnetization test, linear demagnetization test, etc. Its demagnetization index is within 2%. But if working environment is serious oxiditive corrosion, kindly advise for higher protection level.

5. Where is this permanent magnet synchronous motor normally used to?
This permanent magnet synchronous motor is normally used to variable frequency speed situation. MC Motor Technology Co., Ltd. presents the Permanent Magnet Synchronous Motor, a versatile and efficient solution for various applications.
Features: Can be used as a generator Requires a suitable motor controller with AFE function for generator operation Cannot directly use three-phase AC supply voltage for motor startup due to rotor inertia Requires a vector control VFD with special inner software for optimal performance Compatible with Siemens 6SE70 series, Yakawa CR5 series, ABB ACS800 series, Mitsubishi A740 series, B&R P84 and P74 series VFDs MC Motor Technology's MH300 series VFD is recommended for use with this motor Provides protective measures against rotor failure, including corrosion resistance and high-temperature demagnetization tests Demagnetization index within 2% Can be used in variable frequency speed situations Benefits: Efficiently converts mechanical energy into electrical energy when used as a generator Ensures smooth motor startup by using a suitable motor controller Optimal motor performance achieved with vector control VFDs Wide compatibility with leading VFD brands Reliable and durable rotor design with protective measures Minimal risk of demagnetization even in challenging environments Flexible usage in variable frequency speed applications Choose the Permanent Magnet Synchronous Motor from MC Motor Technology Co., Ltd. for reliable and efficient motor solutions.
