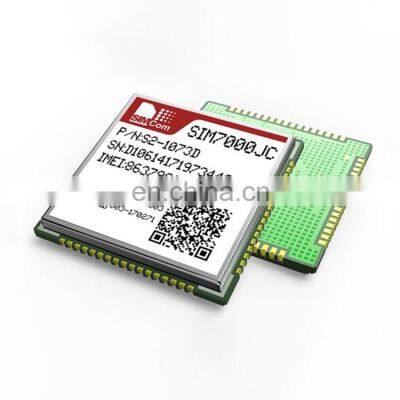

SIMCOM SIM7000JC IoT Module LPWA NB-IoT Modules

Product Description

Product Description
Description• SIMCOM SIM7000JC is an LPWA module equipped with Qualcomm cores and compatible with LTE Cat.M1/NB-IoT that realizes LTE communication with low cost and low power consumption.• The SIM7000JC module will provide excellent cost performance in M2M/IoT equipment field. As one of SIMCom’s multi-mode modules for the Japanese market, SIM7000JC is LCC packaged to support LTE-FDD B1/B3/B5/B8/B18/B19/B26 frequency bands.• It has a size of 24.0*24.0*2.6mm, weighs 3.0g, and supports LTE CAT-M1(eMTC)’s uplink and downlink transmission rates (375kbps and 300kbps), NB-IoT’s uplink and downlink transmission rates (66kbps and 34kbps), and GNSS (GPS, GLONASS, BDS).• SIMCOM SIM7000JC package and AT command are compatible with SIM800F and SIM900 to support the smooth upgrade of customer terminal product design from 2G to NB-IoT/CAT-M1, which minimizes customer investment, shortens the development cycle of customer productsand speeds up the product launching process.• SIMCOM SIM7000JC integrates high performance, security and flexibility, and is designed for M2M applications that require low latency and medium data throughputs, such as metering, vehicle mounting, asset tracking, remote monitoring, healthcare, mobile POS terminal, and the sharing economy.SIM7000JC module specifications:* LTE Cat-M1/NB-IoT* Support 4G LTE Band: B1(2100MHz)/B3(1800MHz)/B8(900MHz)/B26(800 MHz)/ B18/19* LTE Cat-M1 data rate: DL 300Kbps/UL UL 375Kbps* LTE NB-IoT date rate: DL 34Kbps/UL 66Kbps* Support GPS/Glonass/Beidou* Control via AT Command* InterfaceS: UART x 2 / PCM / USB / ADC / I 2 C / GPIO / DEBUG* Support drivers: Windows 2000 / XP / Vista / 7/8/10 / CE / Mobile / Linux / Android / MAC* Other functions: FTP, FTPS, HTTP, HTTPS, TCP / IP, IPv4, IPv6, MQTT* Operating temperature: -30 to 80 °C* Storage environment temperature: -40 to 85 °C* Humidity: 5% to 80% (without condensation)* Rated voltage (operating voltage): DC 3.8 V (DC 3.0 to 4.3 V)* Weight: Approximately 3g* Dimensions: 24 (H) x 24 (W) x 2.6 (D) mm* Support network providers: NTT DoCoMo / KDDI (au) / Softbank (planned)Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
