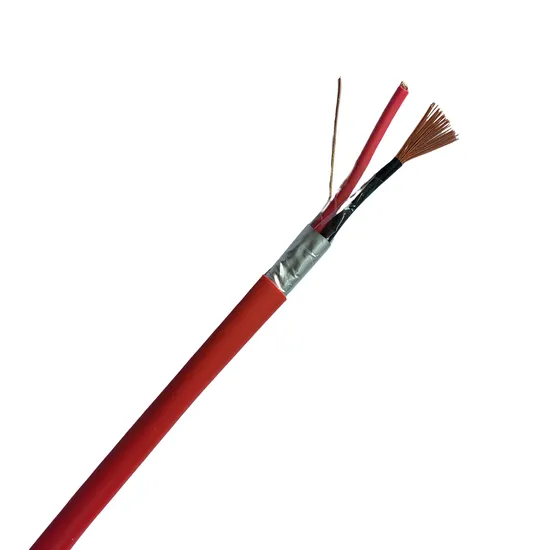

UL1424 Unscreened 2X1.5mm2 Stranded Silicon Low Smoke LSZH Fire Alarm Cable

Product Description

UL 1424 FPLR or FPL Stranded Conductor Fire Alarm Cable
Cables symmetrical,twisted pair,with single copper conductor cross-section from 0,2 to 2,5mm², with the isolation of fire-resistant silicone rubber sheathed in PVC low flammability with low smoke and gas evolution.The shell is orange. Designed for group use,fixed installations in fire protection systems,including fire alarm systems,warning systems and evacuation,automatic fire extinguishing systems,smoke protection systems,as well as in other important life-support systems,which should keep working in a fire;used indoors and out doors. The UL listed FPLR type shielded power limited re alarm riser cable is suitable to be use in a vertical runs in signaling & re alarm system. It works in high temperature levels. This cable is constructed with FR-PVC insulation and outer jacket with aluminum and PE tape shielding that meets UL 1666/1424 specications. This cable complies with VW - 1 Flame Test requirements in ANSI/UL 1581. Tested as per ANSI/UL 1666/1424 for ame propagation height of electrical and optical - Fibre Cables Installed Vertically in Shafts
TYPE:
1x2x0.80mm2, 2x2x0.80mm2, 3x2x0.80mm2, 4x2x0.80mm2, 1x2x1mm2, 2x2x1mm2, 1x2x1.5mm2, 2x2x1.5mm2, 1x2x2.5mm2

Features	Values	Rules
Conductors	annealed red copper cl. 1	CEI EN 60228 (Table 9)
Insulation	cera mifiable silicone rubber
Cores colour	(blue-red) - (yellow-grey) - (green-brown) - (white-black)	DIN VDE 815
Flame protection	glass-fibre tape thickness 0,12 mm
Drain wire	annealed tinned copper
Screen	Al/Pet tape thickness 9/23 µm covering > 110%
Sheath	LSZH compound M1 quality	CEI EN 50363
Sheath colour	red RAL 3000
Fire retardant		CEI EN 60332-3-24
Flame retardant		CEI EN 60332-1-2
Halogen free	(< 0,5 mg/g - 0,5%)	CEI EN 50267-2-1/2 - IEC 60754-1/2
Low smoke emission	(Tras mittance > 60%)	CEI EN 61034-2
Fire resistant	duration 120 min. at temperature of 830 °C. (- 0 ÷ + 40 °C)	CEI EN 50200
Fire resistant	(E30/E60)	DIN VDE 4102-12
Fire resistant	duration 180 min. at temperature of 750 °C FE180	IEC 60331-21 - VDE 472-814
DC resistance	according to	CEI EN 60228 (Table 9)
Rated voltage Uo/U	300/500 V
Max voltage	550 V
Testing voltage	2 kV
Max working temperature	90 °C
Max conductor temperature	180 °C
Short circuit temperature	350 °C
Min. installation temperature	0 °C
Bending radius	Ø x 10

QUALITY POLICY:
Exactcables will manufacture cable according to customer's requirement in an effective and profitable manner. To achieve the above, the Management is committed to the following: Maintain the ISO 9001 Quality Management System Continual review and improvement of the effectiveness of the Quality Management System Provide all necessary resources to manufacture quality cable Create a safe and technologically advanced working environment Respect for the environment in which we operate Training and communication to keep employees informed and involved Every employee has the responsibility to ensure that these requirements are met.
FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A:Our factory is located in Ningbo City, Zhejiang Province, China, about 30 minutes away from Ningbo Lishe Airport .All our clients, from home or abroad, are warmly welcome to visit us!
