High Voltage Polymer Suspension Tension Insulator Sml 70kN Silicone Rubber Insulator Material 12kv Composite Strain Insulator 24kv Line Post Insulator

Product Description

High Voltage Polymer Suspension Insulators Insulators 70kN Silicone Rubber Material
Insulator is used to suspend conductors and keep them insulated from towers and the earth, it is an important part of transmission and distribution lines. Yuanneng focus on composite insulators for over 15 years, we adopt advanced injection and high-temperature vulcanization craft to keep the mold tightly closed without gaps. We use high accuracy and large force crimping machines to guarantee the end metal fittings will not fall off during its standard withstand tension load.

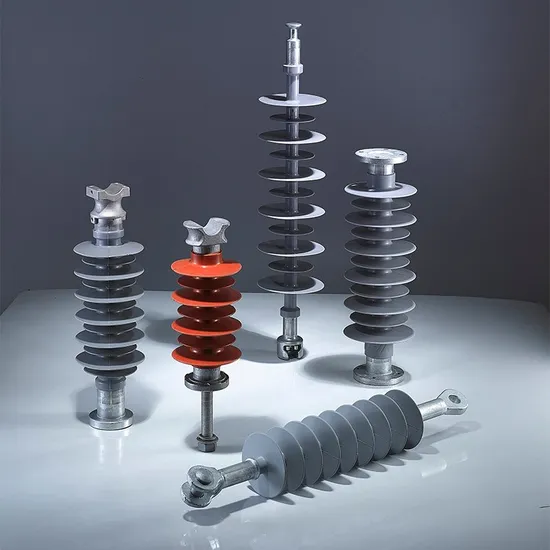

Because of rich experience, now our team can design, produce and optimize various types of insulators. Our types include long rod insulators, pin insulators, cross-arm insulators, post insulators and windproof silicone rubber insulators etc. With feature of good insulation properties and sufficient mechanical performance, yuanneng insulator is a good choice to ensure the reliability and safety of the power system.

Main Technical Parametes (performance meet GB/T9519-2008,IEC61109 and IEC61952)

Product Model	Rated Voltage (kv)	Rated Mechanical Bending Load (kn)	Structure Height H. (mm)	Min. Arc Distance (mm)	Min. Creepage Distance (mm)	Diameter of Shed (mm)	Lightning Impulse Withstand Voltage (peak)(kv)	P.F.1min Wet Withstand Voltage (virtual value)(kv)	Connect Size
FXBW4-6/70	6	70	270±5	80	260	148/118	60	25	16
FXBW4-10/70	10	70	310±5	175	425	125/95	95	42	16
FXBW4-10/100	10	100	367±5	220	460	125/95	95	42	16
FXBW4-35/70	35	70	670±15	490	1350	138/128	230	95	16
FXBW4-35/100	35	100	670±15	450	1320	148/118	230	95	16
FXBW4-66/70	66	70	870(940) ±15	710	2248	148/118	410	185	16
FXBW4-66/100	66	100	870(940) ±15	710	2248	148/118	410	185	16
FXBW4-110/100	110	100	1240(1440) ±15	1000(1200)	3150(3860)	148/118	550	230	16
FXBW4-110/160	110	160	1340±15	1000	3380	148/118	550	230	R20
FXBW4-145/120	145	120	1480±30	1240	4123	148/118	725	355	16
FXBW4-220/100	220	100	2240(2350) (2470)±30	2020(2080)(2210)	6450(6760)(7150)	148/118	1000	395	16
FXBW4-330/160	230	160	2990 ±30	2600	9075	148/118	1425	570	R20
FXBW4-220/210(160)	220	210/160	2350 ±30	2000	6800	158/128	1000	230	R20
FXBW4-330/210(160)	330	210/160	2930 ±30	2650	8790	158/128	1425	570	R20
FXBW4-500/210(160)	500	210/160	4450±30	4075	14860	195/158/128	2050	740	R20

Note: We can produce special connection structure and the height of the product according to your requirements.
Yuanneng Power was established in 2007 year which located in China Electric Capital-, Yueqing city. The corporation is committed to providing services for power infrastructure, including generation, transmission and distribution systems. As a modern high technology enterprise, Yuanneng successfully integrate production, development, sales and service together in the industry. The business scope include polymer insulator, fuse cutout, surge arrester, disconnect switch, and supporting power fitting products etc.
In order to adapt to the development of globalization and occupy a favorable position in the changing international market, yuanneng production conform to different requirements in different regions and markets, such as IEC, ANSI, IEEE, and GB standard. Products manufactured by us have been qualified by Xi'an High Voltage Apparatus Research Institute Co., Ltd (XIHARI), National Insulator & Lightning Arrester Quality Supervision Inspection Center, State Grid Electric Power Science Academy Quality Inspection Test Center etc.
By relying on Ningbo Port's and Shanghai Port's fast and convenient
shipment ability, yuanneng successfully sells products to different countries. Present annual production capacity can reach 500,000pcs polymer insulator, 500,000pcs lightning arrester, 350,000pcs dropout fuse cutout, 250,000pcs disconnect switch. That is an important point for us to maintain a competitive advantage and be strong support for our clients.
Yuanneng Power , will, as always, adhere to the development idea of" Human-oriented, Credibility-based ". We sincerely looking forward to working with you. Connect electricity connect the world.
