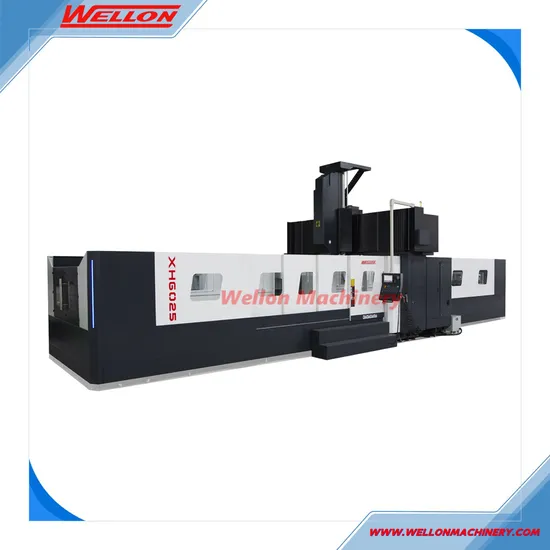

Heavy Duty CNC Double Column Machining Center Xh6025 Gantry Milling Machine

Product Description

Product Description
Products Description:
Heavy Duty CNC Double Column Machining Center Xh6025 Gantry Milling Machine
Main configuration & accessories:
The machine tool has the characteristics of high precision, high efficiency, and environmental protection, which is especially suitable for multi-variety batch precision processing. Its performance indicators and accuracy indicators are fully in line with national standards. The products are modularized and can be serialized and customized according to market needs. Its good performance-price ratio is the best choice for domestic and foreign customers.
The machine tool has the functions of drilling, boring, milling, expanding, reaming, rigid tapping, linear interpolation, arc interpolation, spiral interpolation, three-coordinate linkage, etc. Mainly carry out numerical control processing of various basic large parts, plate parts, disc parts, shell parts, molds and other precision parts. It is suitable for aerospace, shipbuilding, power generation, military industry, heavy machinery, locomotives, machine tools, textile machinery, printing machinery, mold manufacturing and other industries.
The fixed beam type gantry frame structure is adopted, the bed is fixed, and the double columns are bolted to the two sides of the bed. The worktable moves on the X axis on the bed, the spindle box moves in the Z direction on the saddle, and the slide saddle and the spindle box move in the Y direction on the beam.
The main large parts of the machine tool: bed, worktable, column, beam, saddle, and headstock are all made of high-strength cast iron and resin sand. These large parts are optimized by three-dimensional computer software. The layout of the ribs is reasonable and has perfect The heat treatment process is used to eliminate residual stress and ensure that the whole machine has sufficient strength, rigidity and high stability.
Technical parameter:

Item	Unit	XH6025
X axis travel	mm	6000
Y axis travel	mm	2700
Z axis travel	mm	1000
Spindle nose to worktable	mm	280-1280
Distance between two column	mm	2700
Leadscrew diameter	mm	100/63/50
Linear guideway width	mm	55/55/Rectangle
Worktable Length	mm	6000
Worktable width	mm	2300
T slot qty-width*distance	mm	11-28*200
Max loading capacity	Ton	18
Spindle speed	rpm	6000/belt
Spindle motor power	kw	22
Fast moving speed	m/min	10/10/10
Cutting speed	mm/min	1-8000
Spindle taper		BT50
Feed motor power	kw	8/6/5
X/Y/Z axsis motor torque	Nm	50/40/30
Tool Magazine Capacity	pcs	Disc/24
Positioning accuracy	mm	0.025/0.020/0.018
Repeat accuracy	mm	0.015/0.012/0.012
Length	mm	14500
Width	mm	5500
Height	mm	6000
Weight	kg	53000

Standard Accessories:
Fanuc 0i-MF(5) control system
Spindle speed 6000rpm belt type
24 tools disc type
Screw type chip conveyor & chip bucket *2
Chain type chip conveyor & chip bucket *1
Nitrogen balance cylinder
Air conditioner in cabinet
Air gun+Water gun
Automatic lubricating system
2-Axis linear guideway from Taiwan Hiwin
Ball leadscrew from Taiwan Hiwin
Levelling pad,nut and bolts
Tools and tool box
3-Axis linear guideway from Taiwan Hiwin,
Ball leadscrew from taiwan Hiwin,
Optional accessories:
Spindle oil cooler
CTS 20bar
CTS 30bar
Reneshaw tool probe TS27R
Reneshaw workpiece measurement device OMP60
ZF gearbox
Gear head
Manual angle head
Auto angle head
Chain type ATC 32 tools
Chain type ATC 40 tools
HEIDENHAIN scales/1m
4TH Axis rotary table 255mm+tail stock+hydraulic station
5TH Axis rotary table 255mm+hydraulic station
