Sdcad Fixed Mixed Factory Price Large Capacity Automatic Concrete Mixing with Concrete Mixer Wet Mix for Sale

Product Description

Product Overview

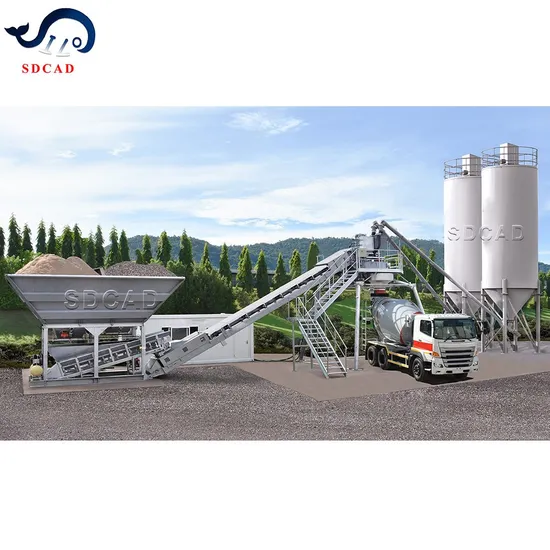

Concrete Batching Plant

It is equipment that combines various ingredients to form concrete. Some of these inputs include water, air, admixtures, sand,aggregate, fly ash, silica fume, slag, and cement. It consists of batching system, mixer and electric control system, belt conveyor etc, which is professional equipment for ready mix concrete production, such as plasticity/dry concrete. SDCADI concrete mixing plant is widely used in small and medium construction products, road, bridge project, and concrete prefabrication factory.

FEATURES AT A GLANCE

Model: HZS25 ~ HZS240
Capacity: 25~ 240 m³/h
Discharge Size :500~4000L
Provide technical support 24 hours.
Engineers to guide the installation and operation
Customized Solution is the Core concepts of SDCADI

Product display

Twin shaft concrete mixer .productivity performance can save about 15% mixing time and 20% production energy consumption. Powder silo, storage silo for bulk material,cement, fly ash, etc.100t/200t/300/ customized. PLD batching plant,Automatic batching equipment equipped with the mixer.finish automatically the batching process of sand,stone,cement etc. Automatic Control System,it is control the whole operation and shows their working situation.Bosure control system Siemens/Toledo customized parts for your choice. Belt Conveyor,By conveying dry particles from top to bottom.Energy savingno noise mainte nance-free and accurate measurement.

Design scheme diagram

PRODUCT SPECIFICATIONS

Model	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS120	HZS150	HZS180
Discharging Capacity (L)	500	750	1000	1000	1500	1500	2000	2500	3000
Charging Capacity(L)	800	1200	1600	1600	2400	2400	3200	4000	4800
Maximum Productivity(m³/h)	25	35	50	60	75	90	120	150	180
Standard Discharging Height(m)	1.5~3.8	2~4.2	4.2	4.2	4.2	4.2	3.8~4.5	4.5	4.5
Number of Species of Aggregate	2~3	2~3	3~4	3~4	3~4	4	4	4	4
Maximum Aggregate Size(mm)	≤60mm	≤80mm	≤80mm	≤80mm	≤80mm	≤80mm	≤120mm	≤150mm	≤180mm
Cement/Powder Silo Capacity(set)	1×100T	2×100T	3×100T	3×100T	3×100T	3×100T	4×100T or 200T	4×200T	4×200T
Mixing Cycle Time(s)	72	60	60	60	60	60	60	30	30
Total Installed Capacity(kw)	60	78.5	111	145	110	198.06	210	230	288

Packaging & Transportation

Successful Project

HZS 35 Project in Thailand

HZS 50 Project in Kenya

HZS 60 Project in South Africa

HZS 120 Project in Russia

HZS 150 Project in Germany

HZS 180 Project in New Zealand

Twin Shafts Concrete Mixer

Dry Mix Mixer Single / Twin Shafts

Planetary Concrete Mixer

FAQ

Are you a manufacturer or Trader? We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service. What is your payment term? We accept T/T, L/C at sight, Western Union, Paypal etc. How long is the validity of quotation? Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market . What is your delivery time? Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days,It depend on the order quantity. Do you provide OEM/ODM Service? Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets. How can we ensure quality? The final inspection is always carried out before shipment. How to install the equipment after purchasing? We will provide a professional installation video to illustrate.Also provide a manual. Do you offer a guarantee? Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support. What is your MOQ? 1Sets
