Digital Push and Pull Force Gauge Monitoring for Measure Force

Product Description

Force gauge is a small measuring instrument to measure force, known as "push pull gauge" or "push pull scale." As the names suggest, force gauge measures push force (compression) and pull force (tension).

Description---------------------------------------------------------------------------------

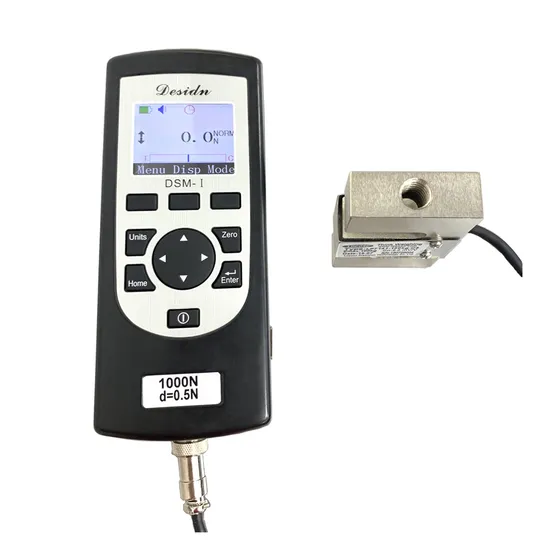

DSM series digital force gauge is a universal portable push and pull load testing instruments, has the advantages of small volume, light weight, easy to carry, multi-function, high precision characteristics, is suitable for sliding load testing of various products, insertion force test, destruction test, a small experimental machine and can be combined with all kinds of machine and fixture composition for different purposes.
A high-quality force gauge can help determine the force that can be applied to an object without negative results or failure. Use force gauges to help test product durability and material integrity. Help measure tension (pull) and compression (push) in real time or peak mode to help provide assembly line quality control. Find a digital or mechanical force gauge that can fit your applications.
Specification-------------------------------------------------------------------------------

Type	DSM-2	DSM-5	DSM-10	DSM-20	DSM-50	DSM-100	DSM-200	DSM-500
Load F.S	2N	5N	10N	20N	50N	100N	200N	500N
Indexing	0.001N	0.001N	0.005N	0.01N	0.01N	0.05N	0.1N	0.1N
Non-linearity	±0.2%
Unit	N, kgf, lbf
ADC Rate	1000Hz
Power	lithium battery, 3.7V/3000mAh
Sensor	inside
Work temperature	0ºC ~ 40ºC
Store temperature	-20ºC ~ 70ºC
Relative humidity	15% ~ 80%
Work environment	no vibration and corrosive medium

Feature---------------------------------------------------------------------------------------
1. High resolution and high precision, high sampling rate up to 960Hz 2. Free to set upper and lower deviation data, automatically determine whether or not qualified 3. Display flip function: test direction can be 180 degrees turn display
4. Full color display: TFT2.4 ', 320*240262K color LCD 5. 50 groups of test data, and automatically calculates the average value, maximum value, minimum value 6. Three unit (N, kgf, lbf) automatic conversion 7. Peak hold automatic unlocking function (0~99 seconds set free) 8. No operation automatic shutdown (0~99 minutes set free) 9. With 7 measurement modes 10. Support for multiple languages 11. The serial output, which can be connected to the computer for analysis the printing process 12. Can set the gravity acceleration value 13. Have the pull pressure bar, and to change the colors of the progress bar and the voice prompt overload tensile stress 14. With the layer menu operation interface original
15. Automatic monitoring of battery, battery instrument will automatically shut down
Safety Precaution-------------------------------------------------------------------------
1. Please read this manual carefully before using
2. In destructive testing, should do the protective work
3. To check fixture before the test fixture, do not use damaged or bending deformation
4. The maximum load sensor for the range 150%. 110% normal use is not recommended more than range
Suggested Use----------------------------------------------------------------------------
1. Can only be used to test the pushing or pulling force, don't let the test rod bending or rotation direction force
2. Range of reasonable selection of push pull
3. This instrument is not waterproof 4. Please use the matching charger adapter
