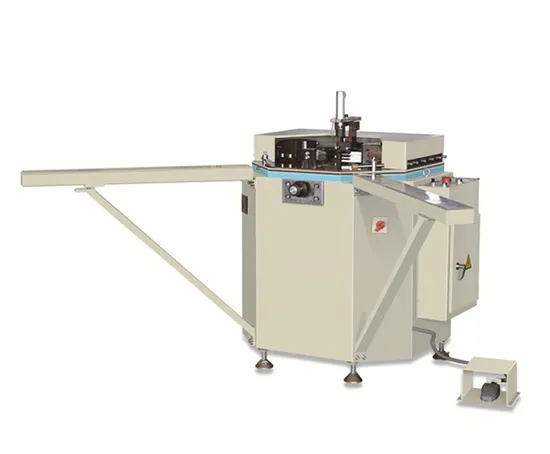

Aluminum Corner Combining Machine for Window Making Machine
Basic Info.
Model NO.
LMB-120
Condition
New
Certification
ISO, CE
Automatic Grade
Semi-Automatic
CNC or Not
not CNC
Voltage
380V
Air Consumption
20L/Min
Operation Air Pressure
0.6-0.8MPa
Profile Processing Width
90mm
Transport Package
Plywood Package
Specification
887kgs
Trademark
MAG
Origin
China
HS Code
84779000
Production Capacity
1000
Packaging & Delivery
Package Size
268.00cm * 102.00cm * 160.00cm
Package Gross Weight
887.000kg
Product Description
Aluminum Corner Crimping Machine/Combining MachineProduct Description
1.1 Hydraulic system driving, ensure a stable working
1.2 Synchronous feeding of the level(left and right side) pushing knives by link with one hydraulic cylinder driving, which avoid the corner deform and enhance the corner connection efficiently
1.3 Convenient operation and less error in processing
1.4 Distance of tool knife adjustable,as the screw thread connection,easy working for tools.
Product Parameters
| 2.1 | Power supply | 50Hz 380V or As Customer Specification |
| 2.2 | Cutting motor power | 1.5kw |
| 2.3 | Operation air pressure | 0.6~0.8MPa |
| 2.4 | Rated pressure | 15MPa |
| 2.5 | Capability of oil box | 20L |
| 2.6 | Profile processing width | 90mm |
| 2.7 | Corner combining casing movement journey | 85mm |
| 2.8 | Overall dimension | 2680*1020*1600mm |
| 2.9 | Weight | 887Kg |
Detailed Photos
Certifications
Company Profile
Our service
| What we can do for customers? |
| Trade Asssurance * With us your money in safe,your business in safe! Pre-Sales Service * Inquiry and consulting support. * Sample testing support. * Design drawing of the factory workshop * View our Factory. After-Sales Service * One year warranty time, we can repair and replace parts for free in one year. * Free training course at our factory with professional engineers. * Technical support in 24 hours online, TM, Skype, E-mail solving the relative questions in time. * Engineers available to service machinery overseas. *We provide the consumable parts at agent price when you need replacement |
Packaging & Shipping
Exhibition
