Sdlg 46t E6460f Large Hydraulic Crawler Excavator with Imported Engine
| US$211,150.00-246,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
E6460F
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
>1.5m³
Size
Large-Scale
Certification
ISO9001: 2000
Condition
New
Overall Operating Weight
46800kg
Max. Digging Radius
11290mm
Max. Digging Depth
7030mm
Max. Digging Height
10590mm
Engine Brand
Volvo
Engine Type
Inter-Cooled, Four-Cylinder, Supercharged
Engine Power
245kw
Emission Standard
Tier III
Min. Fuel-Consume Ratio
208g/Kw.H
Hydraulic Control Type
Pilot Proportional Control Valve
Hydraulic System Type
Double Variable Pump Control System
Transport Package
RO-RO, Container
Specification
3290*3465*3810mm
Trademark
SDLG
Origin
Linyi, Shandong, China
Production Capacity
50000unit/Year
Product Description

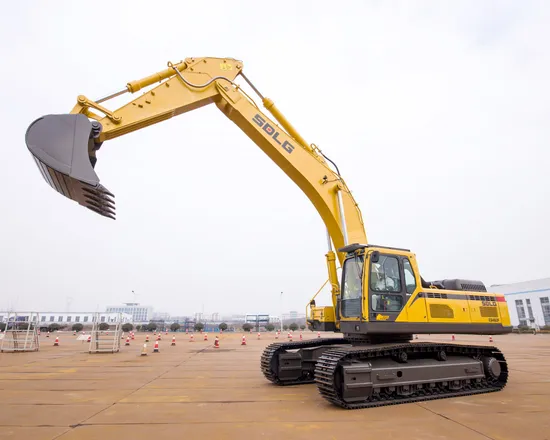

SDLG 46t E6460F large hydraulic crawler excavator with volvo engine
SDLG E6460F is a mine heavy-duty large size excavator, which is equipped with SD130A low speed and high torque Tier3
engine, featuring strong power, high reliability and low fuel consumption. The machine has the standard configuration of
special mine boom, which features high digging force and big bucket capacity, and is widely used in large mine, large
infrastructural projects, etc.
| Overall dimension | |
| Overall width of upper assembly(A) | 2990mm |
| Overall width(B) | 3340mm |
| Overall height of cab(C) | 3190mm |
| Tail swing radius(D) | 3500mm |
| Overall height of engine hood(E) | 2700mm |
| Ground clearance of counterweight (F) | 1210mm |
| Wheelbase (G) | 4240mm |
| Crawler length (H) | 5180mm |
| Crawler gauge (I) | 2740mm |
| Crawler pad width (J) | 600mm |
| Min. ground clearance (K) | 500mm |
| Overall length (L) | 11020mm |
| Overall height of boom (M) | 3580mm |
| Overall parameters | |
| Bucket capacity | 2.0m³ |
| Overall operating weight | 40050kg |
| Max. excavation force | 236KN |
| Slew speed | 0-10.3r/min |
| Traveling speed (low/high) | 3.4/5.3km/h |
| Average ground pressure | 69.4kPa |
| Max. digging radius | 10610mm |
| Max. digging depth | 6850mm |
| Max. digging height | 10170mm |
| Max. dumping height | 7090mm |
| Min. front slewing radius | 4380mm |
| Engine | |
| Model | SD130A |
| Type | Water-cooled, Four-stroke,supercharged |
| Rated Power@Revolution Speed | 215kw/1700r/min |
| Displacement | 12800mL |
| Cylinder bore × stroke | 131*158mm |
| Emission standard | GB20891-2014 China Phase III |
| Traveling/swing system | |
| Qty. of carrier rollers (single side) | 2 |
| Qty. of track rollers (single side) | 9 |
| Traveling brake type | Wet disc brake |
| Swing mode | Hydraulic drive internal tooth single-row ball-bearing |
| Swing brake type | Wet disc brake |
| Hydraulic system | |
| Hydraulic control type | Pilot proportional control valve |
| Hydraulic system type | dual pump constant power negative flow control system |
| Max. flow | 2*300+25.5L/min |
| Main pump model | K3V180 |
| Operating pressure | 320/350kgf/cm2 |
| Main valve model | KMX32N |
| Arm cylinder - cylinder bore× diameter of piston rod × stroke | 1-175*115*1700mm |
| Boom cylinder - cylinder bore× diameter of piston rod × stroke | 2-160*105*1530mm |
| Bucket cylinder - cylinder bore× diameter of piston rod × stroke | 1-145*100*1285mm |
| Fill capacity | |
| Fuel | 620L |
| Engine oil | 45L |
| Hydraulic oil | 515L |
| Antifreeze | 2×6.8L |
| Swing reducer | 6.0L |
