China Wooden Die Cutting Machine
| US$30,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
RD-MQ-930
Imprinting Type
Platen
Placing Form of Template
Horizontal
Die Cutting Tool
Wooden Die
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials, Stickers Products
Max Sheet Cutting Size
900mm
Working Speed
110 Strokes/Min
Transport Package
Wooden Case
Specification
CE
Trademark
Ruida
Origin
China
Production Capacity
100set/Year
Product Description

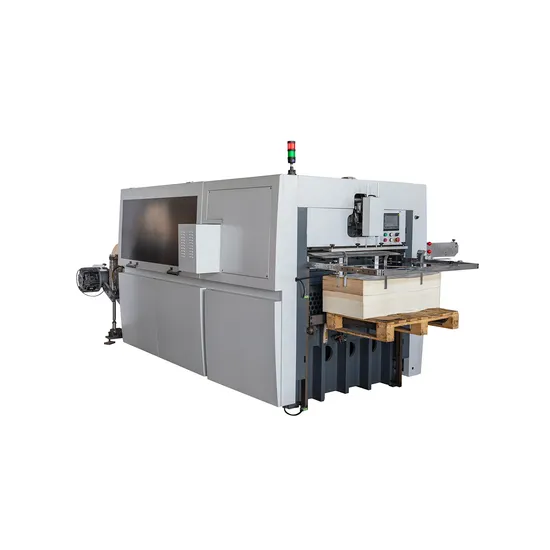

RD-MQ-930 high speed automatic reel paper die cutting machine is the professional equipment which uses for cutting various kind of popular paper and PE coated paper,be applicable to printing,packaging,paper cup and other to the die-cutting area.The machine is suitable for die cutting printed and unprinted paper roll, with touch screen and PLC control, you can die cut by setting following color marks on printed roll or cutting by setting cutting length for unprinted paper roll.Clutch is pneumatic clutch,be fast and reliable.
Product Description
| Model | RD-MQ-930 |
| Power | 7.5kw |
| Weight | 8000kg |
| Press mark max.area | 930*500 |
| Press cut line length | <250mm |
| Speed | 80-120 time/min |
| Applicable paper | 150-450 g/m² |
| Air source | 1.0m³/min;0.8Mpa customer-owned |
| Packing Dimensions | 1830*1830*1900mm,2200*1830*1400mm(L*W*H) |
| Port | Ningbo/Shanghai |
| Shipping Details | By sea/air,according to customers' requirements. |
| Other Products | Paper cup machinery,die cutting machine,paper cup forming machine, cup top flatten machine and other products. |
MAIN PARTS OF RD-MQ-930
| NAME | BRAND |
| PLC | LG (KOREA) |
| SCREEN | HITECH(TAIWAN) |
| LOW-VOLTAGE APPARATUS | CHINT |
| TRANSDUCER | INOVANCE(SHENZHEN) |
| PHOTOELECTRIC SWITCH | SICK(GERMANY) |
| OTHER SENSORS | AUTONICS(KOREA) |
| SERVO MOTOR | YASKAWA (JAPAN) |
| STEPPING MOTOR | AUTOONE(HANGZHOU) |
| BEARING | CHINA |
